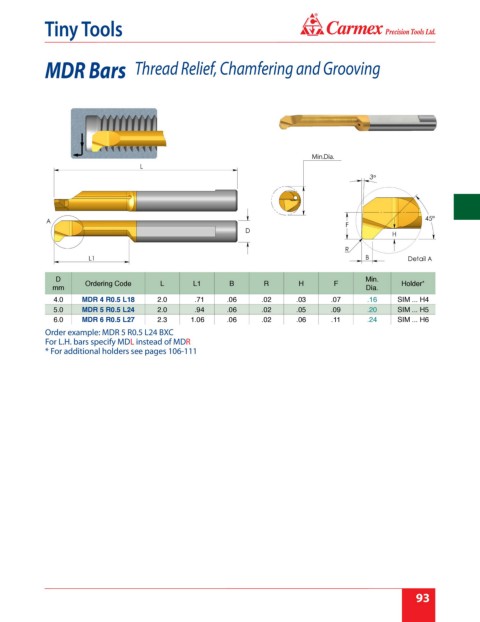

Tiny Tools

MDR Bars Thread Relief, Chamfering and Grooving

D Min.
Ordering Code L L1 B R H F Holder*
mm Dia.
4.0 MDR 4 R0.5 L18 2.0 .71 .06 .02 .03 .07 .16 SIM ... H4
5.0 MDR 5 R0.5 L24 2.0 .94 .06 .02 .05 .09 .20 SIM ... H5
6.0 MDR 6 R0.5 L27 2.3 1.06 .06 .02 .06 .11 .24 SIM ... H6
Order example: MDR 5 R0.5 L24 BXC
For L.H. bars specify MDL instead of MDR
* For additional holders see pages 106-111
