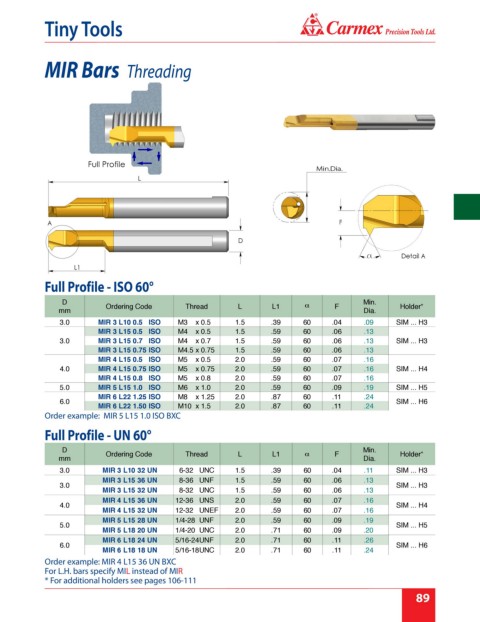

Page 95 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MIR Bars Threading

Full Profile - ISO 60°

D Min.
mm Ordering Code Thread L L1 F Dia. Holder*
3.0 MIR 3 L10 0.5 ISO M3 x 0.5 1.5 .39 60 .04 .09 SIM ... H3
MIR 3 L15 0.5 ISO M4 x 0.5 1.5 .59 60 .06 .13
3.0 MIR 3 L15 0.7 ISO M4 x 0.7 1.5 .59 60 .06 .13 SIM ... H3
MIR 3 L15 0.75 ISO M4.5 x 0.75 1.5 .59 60 .06 .13
MIR 4 L15 0.5 ISO M5 x 0.5 2.0 .59 60 .07 .16
4.0 MIR 4 L15 0.75 ISO M5 x 0.75 2.0 .59 60 .07 .16 SIM ... H4
MIR 4 L15 0.8 ISO M5 x 0.8 2.0 .59 60 .07 .16
5.0 MIR 5 L15 1.0 ISO M6 x 1.0 2.0 .59 60 .09 .19 SIM ... H5
MIR 6 L22 1.25 ISO M8 x 1.25 2.0 .87 60 .11 .24
6.0 SIM ... H6
MIR 6 L22 1.50 ISO M10 x 1.5 2.0 .87 60 .11 .24
Order example: MIR 5 L15 1.0 ISO BXC
Full Profile - UN 60°

D Min.
Ordering Code Thread L L1 F Holder*
mm Dia.
3.0 MIR 3 L10 32 UN 6-32 UNC 1.5 .39 60 .04 .11 SIM ... H3
MIR 3 L15 36 UN 8-36 UNF 1.5 .59 60 .06 .13
3.0 SIM ... H3
MIR 3 L15 32 UN 8-32 UNC 1.5 .59 60 .06 .13
MIR 4 L15 36 UN 12-36 UNS 2.0 .59 60 .07 .16
4.0 SIM ... H4
MIR 4 L15 32 UN 12-32 UNEF 2.0 .59 60 .07 .16
MIR 5 L15 28 UN 1/4-28 UNF 2.0 .59 60 .09 .19
5.0 SIM ... H5
MIR 5 L18 20 UN 1/4-20 UNC 2.0 .71 60 .09 .20
MIR 6 L18 24 UN 5/16-24UNF 2.0 .71 60 .11 .26
6.0 SIM ... H6
MIR 6 L18 18 UN 5/16-18UNC 2.0 .71 60 .11 .24
Order example: MIR 4 L15 36 UN BXC
For L.H. bars specify MIL instead of MIR
* For additional holders see pages 106-111
89
