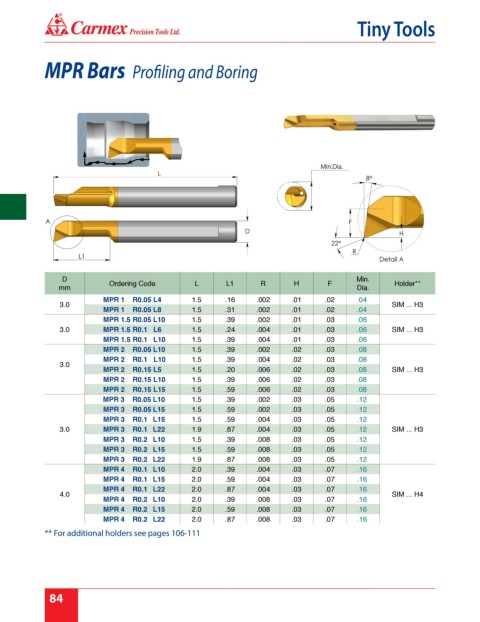

Page 90 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MPR Bars Profiling and Boring

D Min.
Ordering Code L L1 R H F Holder**
mm Dia.
MPR 1 R0.05 L4 1.5 .16 .002 .01 .02 .04
3.0 SIM ... H3
MPR 1 R0.05 L8 1.5 .31 .002 .01 .02 .04
MPR 1.5 R0.05 L10 1.5 .39 .002 .01 .03 .06
3.0 MPR 1.5 R0.1 L6 1.5 .24 .004 .01 .03 .06 SIM ... H3
MPR 1.5 R0.1 L10 1.5 .39 .004 .01 .03 .06
MPR 2 R0.05 L10 1.5 .39 .002 .02 .03 .08
MPR 2 R0.1 L10 1.5 .39 .004 .02 .03 .08
3.0
MPR 2 R0.15 L5 1.5 .20 .006 .02 .03 .08 SIM ... H3
MPR 2 R0.15 L10 1.5 .39 .006 .02 .03 .08
MPR 2 R0.15 L15 1.5 .59 .006 .02 .03 .08
MPR 3 R0.05 L10 1.5 .39 .002 .03 .05 .12
MPR 3 R0.05 L15 1.5 .59 .002 .03 .05 .12
MPR 3 R0.1 L15 1.5 .59 .004 .03 .05 .12
3.0 MPR 3 R0.1 L22 1.9 .87 .004 .03 .05 .12 SIM ... H3
MPR 3 R0.2 L10 1.5 .39 .008 .03 .05 .12
MPR 3 R0.2 L15 1.5 .59 .008 .03 .05 .12
MPR 3 R0.2 L22 1.9 .87 .008 .03 .05 .12
MPR 4 R0.1 L10 2.0 .39 .004 .03 .07 .16
MPR 4 R0.1 L15 2.0 .59 .004 .03 .07 .16
MPR 4 R0.1 L22 2.0 .87 .004 .03 .07 .16
4.0 SIM ... H4
MPR 4 R0.2 L10 2.0 .39 .008 .03 .07 .16
MPR 4 R0.2 L15 2.0 .59 .008 .03 .07 .16
MPR 4 R0.2 L22 2.0 .87 .008 .03 .07 .16
** For additional holders see pages 106-111
