Tiny Tools

Product Identification

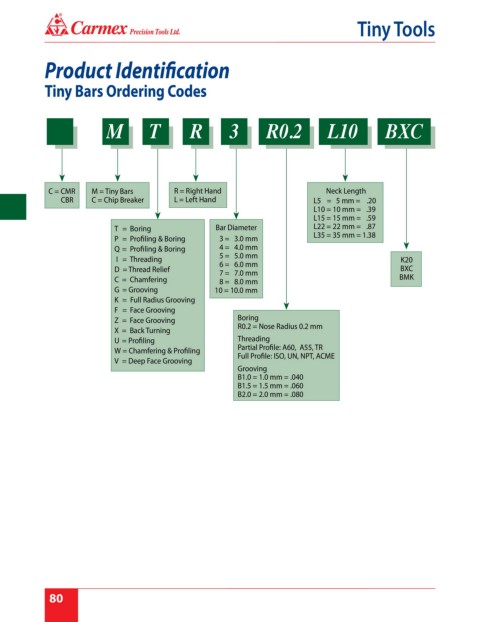

Tiny Bars Ordering Codes

M T R 3 R0.2 L10 BXC

C = CMR M = Tiny Bars R = Right Hand Neck Length
CBR C = Chip Breaker L = Left Hand L5 = 5 mm = .20
L10 = 10 mm = .39
L15 = 15 mm = .59
T = Boring Bar Diameter L22 = 22 mm = .87
P = Profiling & Boring 3 = 3.0 mm L35 = 35 mm = 1.38
Q = Profiling & Boring 4 = 4.0 mm
I = Threading 5 = 5.0 mm K20
D = Thread Relief 6 = 6.0 mm BXC
7 = 7.0 mm
C = Chamfering 8 = 8.0 mm BMK
G = Grooving 10 = 10.0 mm
K = Full Radius Grooving
F = Face Grooving
Z = Face Grooving Boring
X = Back Turning R0.2 = Nose Radius 0.2 mm
U = Profiling Threading
W = Chamfering & Profiling Partial Profile: A60, A55, TR
V = Deep Face Grooving Full Profile: ISO, UN, NPT, ACME
Grooving
B1.0 = 1.0 mm = .040
B1.5 = 1.5 mm = .060
B2.0 = 2.0 mm = .080
