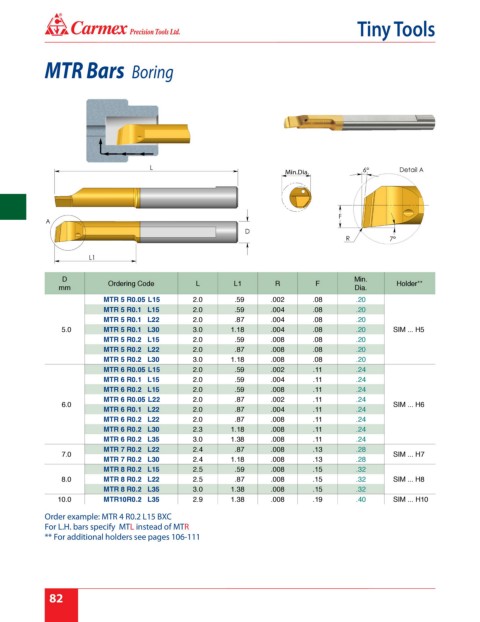

Page 88 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MTR Bars Boring

D Min.
Ordering Code L L1 R F Holder**
mm Dia.
MTR 5 R0.05 L15 2.0 .59 .002 .08 .20
MTR 5 R0.1 L15 2.0 .59 .004 .08 .20
MTR 5 R0.1 L22 2.0 .87 .004 .08 .20
5.0 MTR 5 R0.1 L30 3.0 1.18 .004 .08 .20 SIM ... H5
MTR 5 R0.2 L15 2.0 .59 .008 .08 .20
MTR 5 R0.2 L22 2.0 .87 .008 .08 .20
MTR 5 R0.2 L30 3.0 1.18 .008 .08 .20
MTR 6 R0.05 L15 2.0 .59 .002 .11 .24
MTR 6 R0.1 L15 2.0 .59 .004 .11 .24
MTR 6 R0.2 L15 2.0 .59 .008 .11 .24
MTR 6 R0.05 L22 2.0 .87 .002 .11 .24
6.0 SIM ... H6
MTR 6 R0.1 L22 2.0 .87 .004 .11 .24
MTR 6 R0.2 L22 2.0 .87 .008 .11 .24
MTR 6 R0.2 L30 2.3 1.18 .008 .11 .24
MTR 6 R0.2 L35 3.0 1.38 .008 .11 .24
MTR 7 R0.2 L22 2.4 .87 .008 .13 .28
7.0 SIM ... H7
MTR 7 R0.2 L30 2.4 1.18 .008 .13 .28
MTR 8 R0.2 L15 2.5 .59 .008 .15 .32
8.0 MTR 8 R0.2 L22 2.5 .87 .008 .15 .32 SIM ... H8
MTR 8 R0.2 L35 3.0 1.38 .008 .15 .32
10.0 MTR10R0.2 L35 2.9 1.38 .008 .19 .40 SIM ... H10

Order example: MTR 4 R0.2 L15 BXC
For L.H. bars specify MTL instead of MTR
** For additional holders see pages 106-111

82
