Tiny Tools

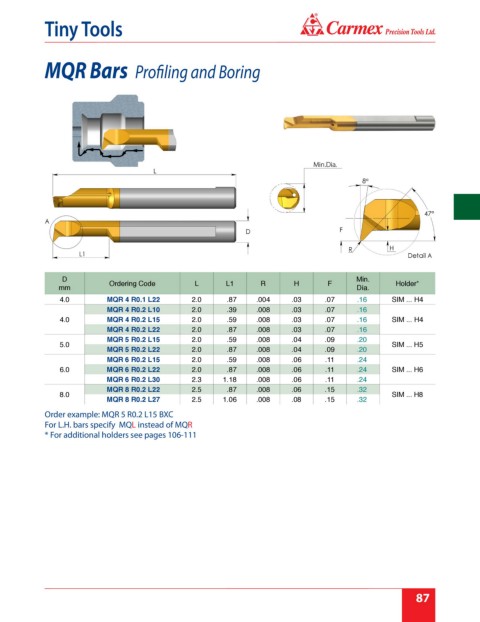

MUR Bars Profiling, 90˚ Face Cutting MQR Bars Profiling and Boring

D Min.
Ordering Code L L1 R H F Holder*
mm Dia.
4.0 MQR 4 R0.1 L22 2.0 .87 .004 .03 .07 .16 SIM ... H4
MQR 4 R0.2 L10 2.0 .39 .008 .03 .07 .16
4.0 MQR 4 R0.2 L15 2.0 .59 .008 .03 .07 .16 SIM ... H4
MQR 4 R0.2 L22 2.0 .87 .008 .03 .07 .16
MQR 5 R0.2 L15 2.0 .59 .008 .04 .09 .20
5.0 SIM ... H5
MQR 5 R0.2 L22 2.0 .87 .008 .04 .09 .20
MQR 6 R0.2 L15 2.0 .59 .008 .06 .11 .24
6.0 MQR 6 R0.2 L22 2.0 .87 .008 .06 .11 .24 SIM ... H6
MQR 6 R0.2 L30 2.3 1.18 .008 .06 .11 .24
MQR 8 R0.2 L22 2.5 .87 .008 .06 .15 .32
8.0 SIM ... H8
MQR 8 R0.2 L27 2.5 1.06 .008 .08 .15 .32
Order example: MQR 5 R0.2 L15 BXC
For L.H. bars specify MQL instead of MQR
* For additional holders see pages 106-111
