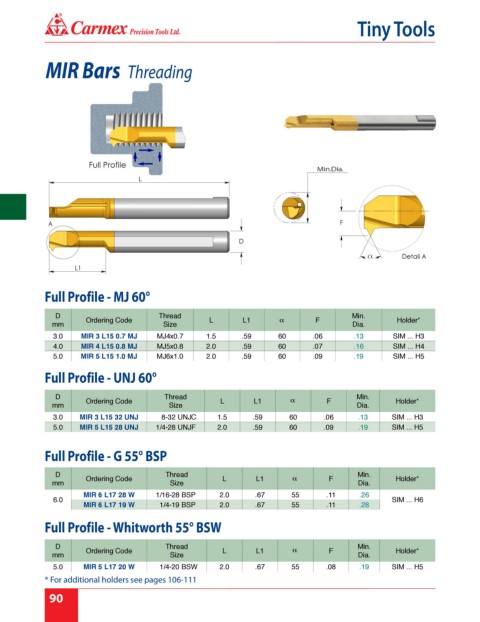

Page 96 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MIR Bars Threading

Full Profile - MJ 60°

D Thread Min.
Ordering Code L L1 F Holder*
mm Size Dia.
3.0 MIR 3 L15 0.7 MJ MJ4x0.7 1.5 .59 60 .06 .13 SIM ... H3
4.0 MIR 4 L15 0.8 MJ MJ5x0.8 2.0 .59 60 .07 .16 SIM ... H4
5.0 MIR 5 L15 1.0 MJ MJ6x1.0 2.0 .59 60 .09 .19 SIM ... H5

Full Profile - UNJ 60°

D Thread Min.
mm Ordering Code Size L L1 F Dia. Holder*
3.0 MIR 3 L15 32 UNJ 8-32 UNJC 1.5 .59 60 .06 .13 SIM ... H3
5.0 MIR 5 L15 28 UNJ 1/4-28 UNJF 2.0 .59 60 .09 .19 SIM ... H5

Full Profile - G 55° BSP

D Ordering Code Thread L L1 F Min. Holder*
mm Size Dia.
MIR 6 L17 28 W 1/16-28 BSP 2.0 .67 55 .11 .26
6.0 SIM ... H6
MIR 6 L17 19 W 1/4-19 BSP 2.0 .67 55 .11 .28

Full Profile - Whitworth 55° BSW

D Ordering Code Thread L L1 F Min. Holder*
mm Size Dia.
5.0 MIR 5 L17 20 W 1/4-20 BSW 2.0 .67 55 .08 .19 SIM ... H5
* For additional holders see pages 106-111
