Tiny Tools

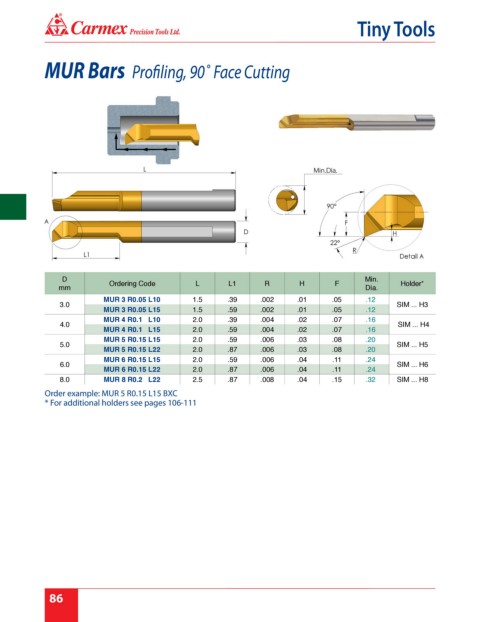

MUR Bars Profiling, 90˚ Face Cutting

D Min.
Ordering Code L L1 R H F Holder*
mm Dia.
MUR 3 R0.05 L10 1.5 .39 .002 .01 .05 .12
3.0 SIM ... H3
MUR 3 R0.05 L15 1.5 .59 .002 .01 .05 .12
MUR 4 R0.1 L10 2.0 .39 .004 .02 .07 .16
4.0 SIM ... H4
MUR 4 R0.1 L15 2.0 .59 .004 .02 .07 .16
MUR 5 R0.15 L15 2.0 .59 .006 .03 .08 .20
5.0 SIM ... H5
MUR 5 R0.15 L22 2.0 .87 .006 .03 .08 .20
MUR 6 R0.15 L15 2.0 .59 .006 .04 .11 .24
6.0 SIM ... H6
MUR 6 R0.15 L22 2.0 .87 .006 .04 .11 .24
8.0 MUR 8 R0.2 L22 2.5 .87 .008 .04 .15 .32 SIM ... H8
Order example: MUR 5 R0.15 L15 BXC
* For additional holders see pages 106-111
