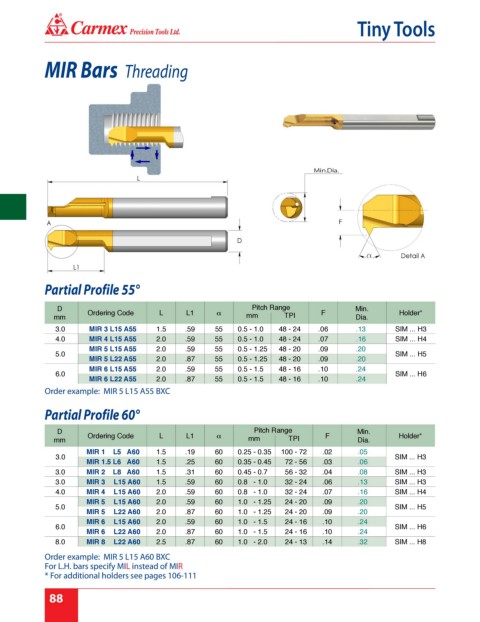

Page 94 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MIR Bars Threading

Partial Profile 55°

D Ordering Code L L1 Pitch Range F Min. Holder*
mm mm TPI Dia.
3.0 MIR 3 L15 A55 1.5 .59 55 0.5 - 1.0 48 - 24 .06 .13 SIM ... H3
4.0 MIR 4 L15 A55 2.0 .59 55 0.5 - 1.0 48 - 24 .07 .16 SIM ... H4
MIR 5 L15 A55 2.0 .59 55 0.5 - 1.25 48 - 20 .09 .20
5.0 SIM ... H5
MIR 5 L22 A55 2.0 .87 55 0.5 - 1.25 48 - 20 .09 .20
MIR 6 L15 A55 2.0 .59 55 0.5 - 1.5 48 - 16 .10 .24
6.0 SIM ... H6
MIR 6 L22 A55 2.0 .87 55 0.5 - 1.5 48 - 16 .10 .24
Order example: MIR 5 L15 A55 BXC

Partial Profile 60°

D Ordering Code L L1 Pitch Range F Min. Holder*
mm mm TPI Dia.
MIR 1 L5 A60 1.5 .19 60 0.25 - 0.35 100 - 72 .02 .05
3.0 SIM ... H3
MIR 1.5 L6 A60 1.5 .25 60 0.35 - 0.45 72 - 56 .03 .06
3.0 MIR 2 L8 A60 1.5 .31 60 0.45 - 0.7 56 - 32 .04 .08 SIM ... H3
3.0 MIR 3 L15 A60 1.5 .59 60 0.8 - 1.0 32 - 24 .06 .13 SIM ... H3
4.0 MIR 4 L15 A60 2.0 .59 60 0.8 - 1.0 32 - 24 .07 .16 SIM ... H4
MIR 5 L15 A60 2.0 .59 60 1.0 - 1.25 24 - 20 .09 .20
5.0 SIM ... H5
MIR 5 L22 A60 2.0 .87 60 1.0 - 1.25 24 - 20 .09 .20
MIR 6 L15 A60 2.0 .59 60 1.0 - 1.5 24 - 16 .10 .24
6.0 SIM ... H6
MIR 6 L22 A60 2.0 .87 60 1.0 - 1.5 24 - 16 .10 .24
8.0 MIR 8 L22 A60 2.5 .87 60 1.0 - 2.0 24 - 13 .14 .32 SIM ... H8
Order example: MIR 5 L15 A60 BXC
For L.H. bars specify MIL instead of MIR
* For additional holders see pages 106-111
