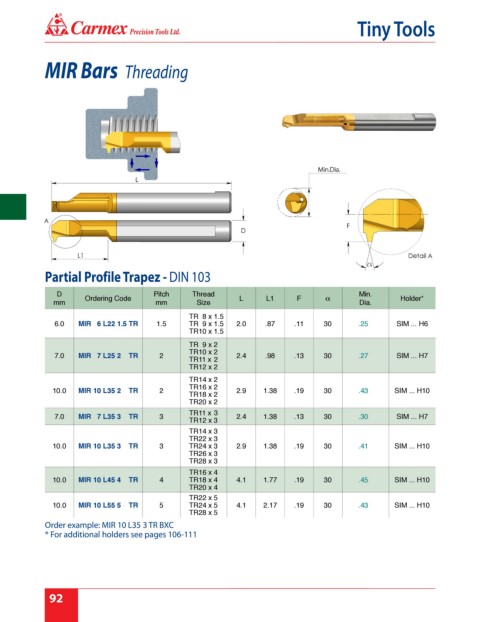

Page 98 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MIR Bars Threading

Partial Profile Trapez - DIN 103

D Pitch Thread Min.
Ordering Code L L1 F Holder*
mm mm Size Dia.
TR 8 x 1.5
6.0 MIR 6 L22 1.5 TR 1.5 TR 9 x 1.5 2.0 .87 .11 30 .25 SIM ... H6
TR10 x 1.5
TR 9 x 2
TR10 x 2
7.0 MIR 7 L25 2 TR 2 2.4 .98 .13 30 .27 SIM ... H7
TR11 x 2
TR12 x 2
TR14 x 2
TR16 x 2
10.0 MIR 10 L35 2 TR 2 2.9 1.38 .19 30 .43 SIM ... H10
TR18 x 2
TR20 x 2
TR11 x 3
7.0 MIR 7 L35 3 TR 3 2.4 1.38 .13 30 .30 SIM ... H7
TR12 x 3
TR14 x 3
TR22 x 3
10.0 MIR 10 L35 3 TR 3 TR24 x 3 2.9 1.38 .19 30 .41 SIM ... H10
TR26 x 3
TR28 x 3
TR16 x 4
10.0 MIR 10 L45 4 TR 4 TR18 x 4 4.1 1.77 .19 30 .45 SIM ... H10
TR20 x 4
TR22 x 5
10.0 MIR 10 L55 5 TR 5 TR24 x 5 4.1 2.17 .19 30 .43 SIM ... H10
TR28 x 5
Order example: MIR 10 L35 3 TR BXC
* For additional holders see pages 106-111
