Tiny Tools

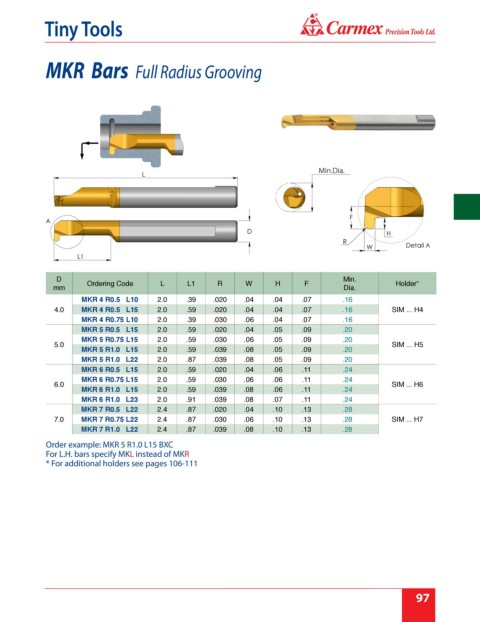

MKR Bars Full Radius Grooving

D Min.
Ordering Code L L1 R W H F Holder*
mm Dia.
MKR 4 R0.5 L10 2.0 .39 .020 .04 .04 .07 .16
4.0 MKR 4 R0.5 L15 2.0 .59 .020 .04 .04 .07 .16 SIM ... H4
MKR 4 R0.75 L10 2.0 .39 .030 .06 .04 .07 .16
MKR 5 R0.5 L15 2.0 .59 .020 .04 .05 .09 .20
MKR 5 R0.75 L15 2.0 .59 .030 .06 .05 .09 .20
5.0 SIM ... H5
MKR 5 R1.0 L15 2.0 .59 .039 .08 .05 .09 .20
MKR 5 R1.0 L22 2.0 .87 .039 .08 .05 .09 .20
MKR 6 R0.5 L15 2.0 .59 .020 .04 .06 .11 .24
MKR 6 R0.75 L15 2.0 .59 .030 .06 .06 .11 .24
6.0 SIM ... H6
MKR 6 R1.0 L15 2.0 .59 .039 .08 .06 .11 .24
MKR 6 R1.0 L23 2.0 .91 .039 .08 .07 .11 .24
MKR 7 R0.5 L22 2.4 .87 .020 .04 .10 .13 .28
7.0 MKR 7 R0.75 L22 2.4 .87 .030 .06 .10 .13 .28 SIM ... H7
MKR 7 R1.0 L22 2.4 .87 .039 .08 .10 .13 .28
Order example: MKR 5 R1.0 L15 BXC
For L.H. bars specify MKL instead of MKR
* For additional holders see pages 106-111
