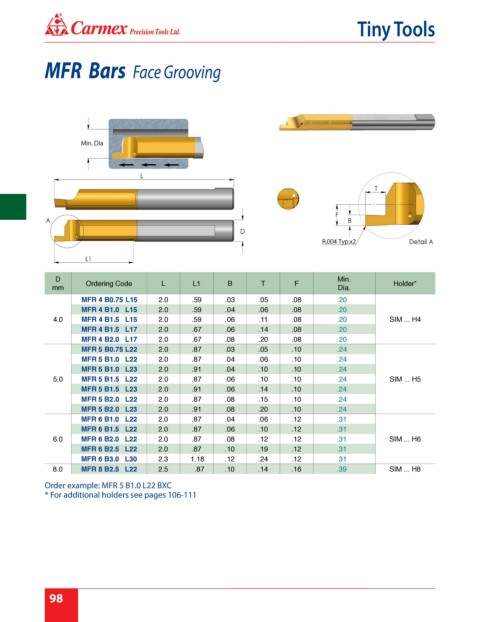

Page 104 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MFR Bars Face Grooving

D Min.
Ordering Code L L1 B T F Holder*
mm Dia.
MFR 4 B0.75 L15 2.0 .59 .03 .05 .08 .20
MFR 4 B1.0 L15 2.0 .59 .04 .06 .08 .20
4.0 MFR 4 B1.5 L15 2.0 .59 .06 .11 .08 .20 SIM ... H4
MFR 4 B1.5 L17 2.0 .67 .06 .14 .08 .20
MFR 4 B2.0 L17 2.0 .67 .08 .20 .08 .20
MFR 5 B0.75 L22 2.0 .87 .03 .05 .10 .24
MFR 5 B1.0 L22 2.0 .87 .04 .06 .10 .24
MFR 5 B1.0 L23 2.0 .91 .04 .10 .10 .24
5.0 MFR 5 B1.5 L22 2.0 .87 .06 .10 .10 .24 SIM ... H5
MFR 5 B1.5 L23 2.0 .91 .06 .14 .10 .24
MFR 5 B2.0 L22 2.0 .87 .08 .15 .10 .24
MFR 5 B2.0 L23 2.0 .91 .08 .20 .10 .24
MFR 6 B1.0 L22 2.0 .87 .04 .06 .12 .31
MFR 6 B1.5 L22 2.0 .87 .06 .10 .12 .31
6.0 MFR 6 B2.0 L22 2.0 .87 .08 .12 .12 .31 SIM ... H6
MFR 6 B2.5 L22 2.0 .87 .10 .19 .12 .31
MFR 6 B3.0 L30 2.3 1.18 .12 .24 .12 .31
8.0 MFR 8 B2.5 L22 2.5 .87 .10 .14 .16 .39 SIM ... H8

Order example: MFR 5 B1.0 L22 BXC
* For additional holders see pages 106-111
