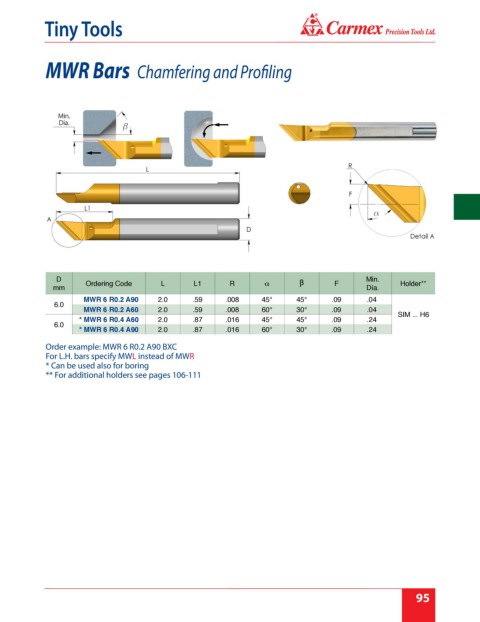

Tiny Tools

MWR Bars Chamfering and Profiling

D Min.
Ordering Code L L1 R F Holder**
mm Dia.
MWR 6 R0.2 A90 2.0 .59 .008 45° 45° .09 .04
6.0
MWR 6 R0.2 A60 2.0 .59 .008 60° 30° .09 .04
SIM ... H6
* MWR 6 R0.4 A60 2.0 .87 .016 45° 45° .09 .24
6.0
* MWR 6 R0.4 A90 2.0 .87 .016 60° 30° .09 .24
Order example: MWR 6 R0.2 A90 BXC
For L.H. bars specify MWL instead of MWR
* Can be used also for boring
** For additional holders see pages 106-111
