P. 100
®

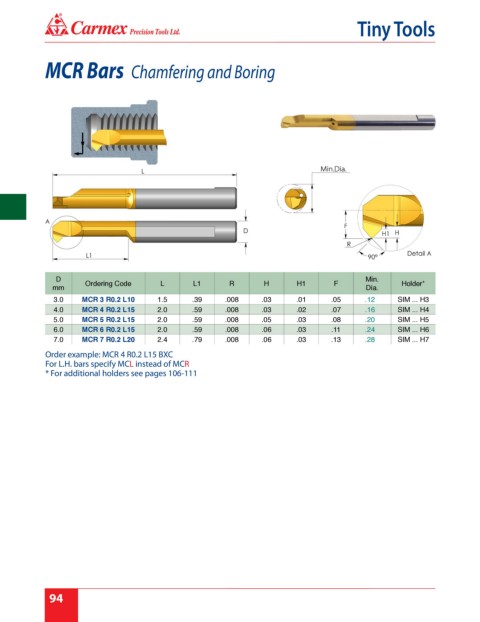

Tiny Tools
MCR Bars Chamfering and Boring
D Min.
Ordering Code L L1 R H H1 F Holder*
mm Dia.
3.0 MCR 3 R0.2 L10 1.5 .39 .008 .03 .01 .05 .12 SIM ... H3
4.0 MCR 4 R0.2 L15 2.0 .59 .008 .03 .02 .07 .16 SIM ... H4
5.0 MCR 5 R0.2 L15 2.0 .59 .008 .05 .03 .08 .20 SIM ... H5
6.0 MCR 6 R0.2 L15 2.0 .59 .008 .06 .03 .11 .24 SIM ... H6
7.0 MCR 7 R0.2 L20 2.4 .79 .008 .06 .03 .13 .28 SIM ... H7
Order example: MCR 4 R0.2 L15 BXC
For L.H. bars specify MCL instead of MCR
* For additional holders see pages 106-111
