Tiny Tools

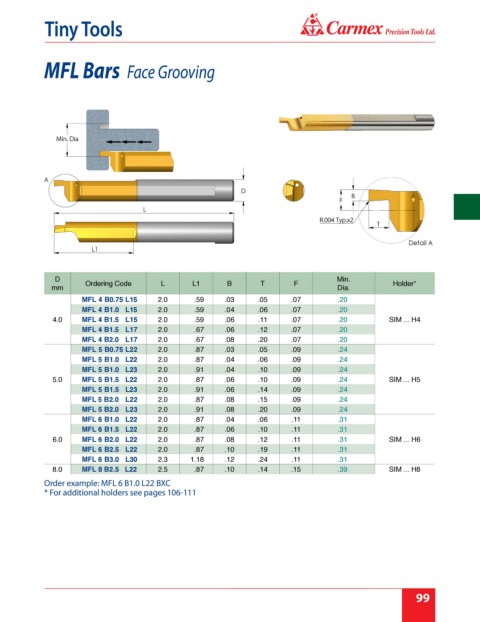

MFL Bars Face Grooving

D Min.
Ordering Code L L1 B T F Holder*
mm Dia.
MFL 4 B0.75 L15 2.0 .59 .03 .05 .07 .20
MFL 4 B1.0 L15 2.0 .59 .04 .06 .07 .20
4.0 MFL 4 B1.5 L15 2.0 .59 .06 .11 .07 .20 SIM ... H4
MFL 4 B1.5 L17 2.0 .67 .06 .12 .07 .20
MFL 4 B2.0 L17 2.0 .67 .08 .20 .07 .20
MFL 5 B0.75 L22 2.0 .87 .03 .05 .09 .24
MFL 5 B1.0 L22 2.0 .87 .04 .06 .09 .24
MFL 5 B1.0 L23 2.0 .91 .04 .10 .09 .24
5.0 MFL 5 B1.5 L22 2.0 .87 .06 .10 .09 .24 SIM ... H5
MFL 5 B1.5 L23 2.0 .91 .06 .14 .09 .24
MFL 5 B2.0 L22 2.0 .87 .08 .15 .09 .24
MFL 5 B2.0 L23 2.0 .91 .08 .20 .09 .24
MFL 6 B1.0 L22 2.0 .87 .04 .06 .11 .31
MFL 6 B1.5 L22 2.0 .87 .06 .10 .11 .31
6.0 MFL 6 B2.0 L22 2.0 .87 .08 .12 .11 .31 SIM ... H6
MFL 6 B2.5 L22 2.0 .87 .10 .19 .11 .31
MFL 6 B3.0 L30 2.3 1.18 .12 .24 .11 .31
8.0 MFL 8 B2.5 L22 2.5 .87 .10 .14 .15 .39 SIM ... H8
Order example: MFL 6 B1.0 L22 BXC
* For additional holders see pages 106-111
