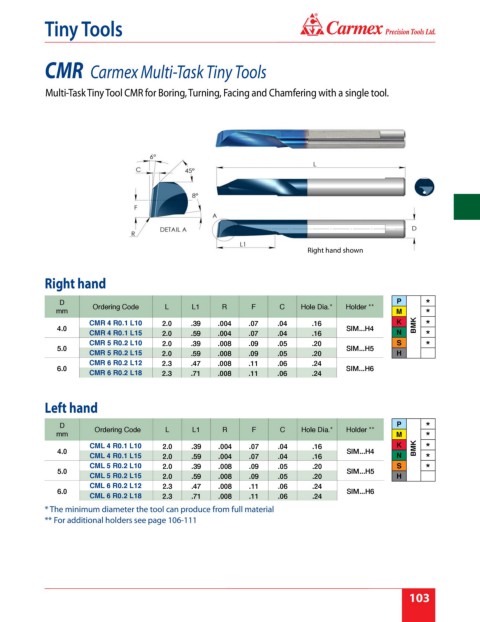

Page 109 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

CMR Carmex Multi-Task Tiny Tools

Multi-Task Tiny Tool CMR for Boring, Turning, Facing and Chamfering with a single tool.

Right hand shown

Right hand

D P *
Ordering Code L L1 R F C Hole Dia.* Holder **
mm M
*
4.0 CMR 4 R0.1 L10 2.0 .39 .004 .07 .04 .16 SIM...H4 K BMK *
CMR 4 R0.1 L15 2.0 .59 .004 .07 .04 .16 N *
5.0 CMR 5 R0.2 L10 2.0 .39 .008 .09 .05 .20 SIM...H5 S *
CMR 5 R0.2 L15 2.0 .59 .008 .09 .05 .20 H
6.0 CMR 6 R0.2 L12 2.3 .47 .008 .11 .06 .24 SIM...H6
CMR 6 R0.2 L18 2.3 .71 .008 .11 .06 .24

Left hand

D P *
Ordering Code L L1 R F C Hole Dia.* Holder **
mm M
*
4.0 CML 4 R0.1 L10 2.0 .39 .004 .07 .04 .16 SIM...H4 K BMK *
CML 4 R0.1 L15 2.0 .59 .004 .07 .04 .16 N *
5.0 CML 5 R0.2 L10 2.0 .39 .008 .09 .05 .20 SIM...H5 S *
CML 5 R0.2 L15 2.0 .59 .008 .09 .05 .20 H
6.0 CML 6 R0.2 L12 2.3 .47 .008 .11 .06 .24 SIM...H6
CML 6 R0.2 L18 2.3 .71 .008 .11 .06 .24
* The minimum diameter the tool can produce from full material
** For additional holders see page 106-111
