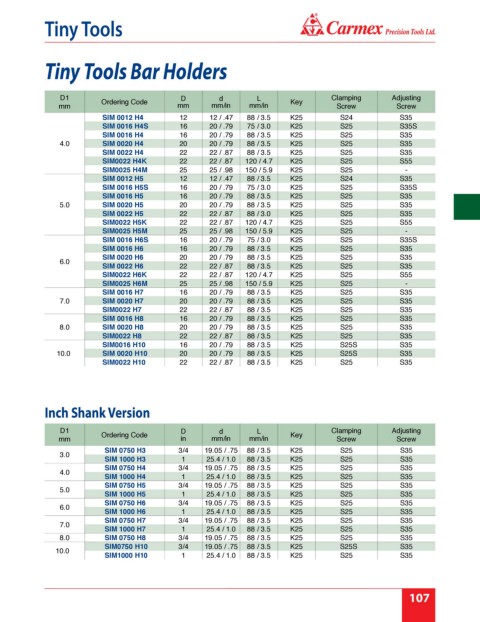

Page 113 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

Tiny Tools Bar Holders

D1 D d L Clamping Adjusting
Ordering Code Key
mm mm mm/in mm/in Screw Screw
SIM 0012 H4 12 12 / .47 88 / 3.5 K25 S24 S35
SIM 0016 H4S 16 20 / .79 75 / 3.0 K25 S25 S35S
SIM 0016 H4 16 20 / .79 88 / 3.5 K25 S25 S35
4.0 SIM 0020 H4 20 20 / .79 88 / 3.5 K25 S25 S35
SIM 0022 H4 22 22 / .87 88 / 3.5 K25 S25 S35
SIM0022 H4K 22 22 / .87 120 / 4.7 K25 S25 S55
SIM0025 H4M 25 25 / .98 150 / 5.9 K25 S25 -
SIM 0012 H5 12 12 / .47 88 / 3.5 K25 S24 S35
SIM 0016 H5S 16 20 / .79 75 / 3.0 K25 S25 S35S
SIM 0016 H5 16 20 / .79 88 / 3.5 K25 S25 S35
5.0 SIM 0020 H5 20 20 / .79 88 / 3.5 K25 S25 S35
SIM 0022 H5 22 22 / .87 88 / 3.0 K25 S25 S35
SIM0022 H5K 22 22 / .87 120 / 4.7 K25 S25 S55
SIM0025 H5M 25 25 / .98 150 / 5.9 K25 S25 -
SIM 0016 H6S 16 20 / .79 75 / 3.0 K25 S25 S35S
SIM 0016 H6 16 20 / .79 88 / 3.5 K25 S25 S35
SIM 0020 H6 20 20 / .79 88 / 3.5 K25 S25 S35
6.0
SIM 0022 H6 22 22 / .87 88 / 3.5 K25 S25 S35
SIM0022 H6K 22 22 / .87 120 / 4.7 K25 S25 S55
SIM0025 H6M 25 25 / .98 150 / 5.9 K25 S25 -
SIM 0016 H7 16 20 / .79 88 / 3.5 K25 S25 S35
7.0 SIM 0020 H7 20 20 / .79 88 / 3.5 K25 S25 S35
SIM0022 H7 22 22 / .87 88 / 3.5 K25 S25 S35
SIM 0016 H8 16 20 / .79 88 / 3.5 K25 S25 S35
8.0 SIM 0020 H8 20 20 / .79 88 / 3.5 K25 S25 S35
SIM0022 H8 22 22 / .87 88 / 3.5 K25 S25 S35
SIM0016 H10 16 20 / .79 88 / 3.5 K25 S25S S35
10.0 SIM 0020 H10 20 20 / .79 88 / 3.5 K25 S25S S35
SIM0022 H10 22 22 / .87 88 / 3.5 K25 S25 S35

Inch Shank Version

D1 Ordering Code D d L Key Clamping Adjusting
mm in mm/in mm/in Screw Screw
SIM 0750 H3 3/4 19.05 / .75 88 / 3.5 K25 S25 S35
3.0
SIM 1000 H3 1 25.4 / 1.0 88 / 3.5 K25 S25 S35
SIM 0750 H4 3/4 19.05 / .75 88 / 3.5 K25 S25 S35
4.0
SIM 1000 H4 1 25.4 / 1.0 88 / 3.5 K25 S25 S35
SIM 0750 H5 3/4 19.05 / .75 88 / 3.5 K25 S25 S35
5.0
SIM 1000 H5 1 25.4 / 1.0 88 / 3.5 K25 S25 S35
SIM 0750 H6 3/4 19.05 / .75 88 / 3.5 K25 S25 S35
6.0
SIM 1000 H6 1 25.4 / 1.0 88 / 3.5 K25 S25 S35
SIM 0750 H7 3/4 19.05 / .75 88 / 3.5 K25 S25 S35
7.0
SIM 1000 H7 1 25.4 / 1.0 88 / 3.5 K25 S25 S35
8.0 SIM 0750 H8 3/4 19.05 / .75 88 / 3.5 K25 S25 S35
SIM0750 H10 3/4 19.05 / .75 88 / 3.5 K25 S25S S35
10.0
SIM1000 H10 1 25.4 / 1.0 88 / 3.5 K25 S25 S35
