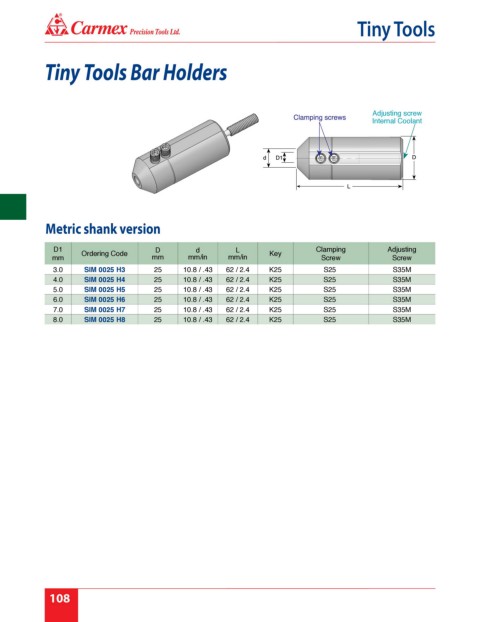

Page 114 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

Tiny Tools Bar Holders

Adjusting screw
Internal Coolant

Metric shank version

D1 D d L Clamping Adjusting
Ordering Code Key
mm mm mm/in mm/in Screw Screw
3.0 SIM 0025 H3 25 10.8 / .43 62 / 2.4 K25 S25 S35M
4.0 SIM 0025 H4 25 10.8 / .43 62 / 2.4 K25 S25 S35M
5.0 SIM 0025 H5 25 10.8 / .43 62 / 2.4 K25 S25 S35M
6.0 SIM 0025 H6 25 10.8 / .43 62 / 2.4 K25 S25 S35M
7.0 SIM 0025 H7 25 10.8 / .43 62 / 2.4 K25 S25 S35M
8.0 SIM 0025 H8 25 10.8 / .43 62 / 2.4 K25 S25 S35M

108
