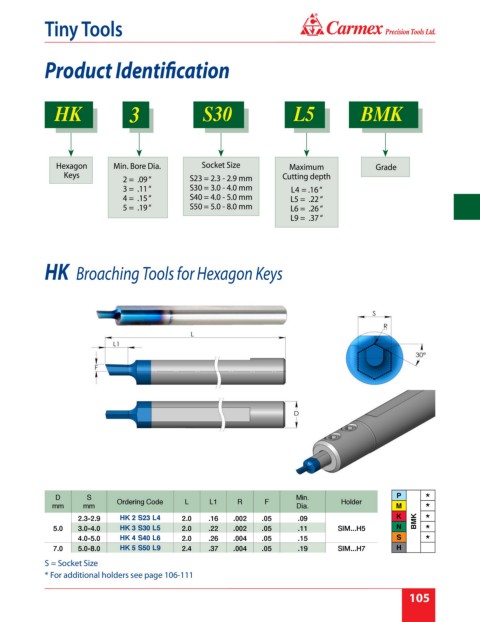

Page 111 - Carmex - Inch Catalog 2018-19 Rev. B
P. 111
®
Tiny Tools
Product Identification
HK 3 S30 L5 BMK
Hexagon Min. Bore Dia. Socket Size Maximum Grade
Keys 2 = .09 “ S23 = 2.3 - 2.9 mm Cutting depth
3 = .11 “ S30 = 3.0 - 4.0 mm L4 = .16 “
4 = .15 “ S40 = 4.0 - 5.0 mm L5 = .22 “
5 = .19 “ S50 = 5.0 - 8.0 mm L6 = .26 “
L9 = .37 “
HK Broaching Tools for Hexagon Keys
D S Min. P *
Ordering Code L L1 R F Holder
mm mm Dia. M *
2.3-2.9 HK 2 S23 L4 2.0 .16 .002 .05 .09 K BMK *
5.0 3.0-4.0 HK 3 S30 L5 2.0 .22 .002 .05 .11 SIM...H5 N *
4.0-5.0 HK 4 S40 L6 2.0 .26 .004 .05 .15 S *
7.0 5.0-8.0 HK 5 S50 L9 2.4 .37 .004 .05 .19 SIM...H7 H
S = Socket Size
* For additional holders see page 106-111
105
