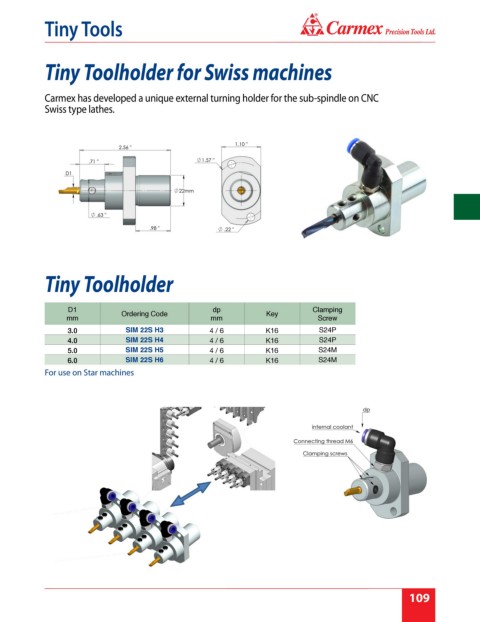

Tiny Tools
Tiny Toolholder for Swiss machines
Carmex has developed a unique external turning holder for the sub-spindle on CNC
Swiss type lathes.
Tiny Toolholder
D1 dp Clamping
Ordering Code Key
mm mm Screw
3.0 SIM 22S H3 4 / 6 K16 S24P
4.0 SIM 22S H4 4 / 6 K16 S24P
5.0 SIM 22S H5 4 / 6 K16 S24M
6.0 SIM 22S H6 4 / 6 K16 S24M
For use on Star machines
