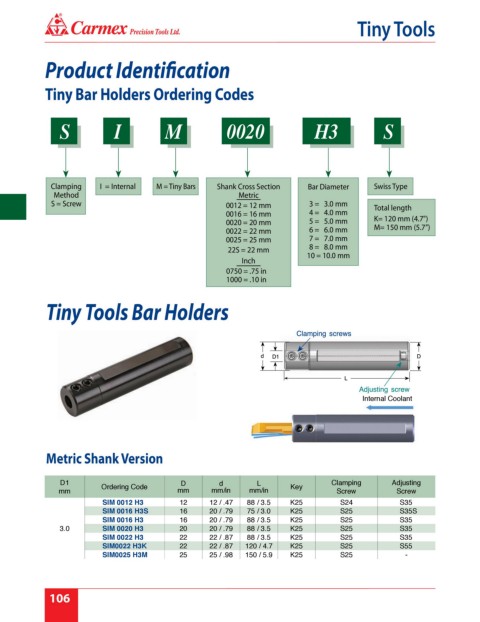

Page 112 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

Product Identification

Tiny Bar Holders Ordering Codes

S I M 0020 H3 S

Clamping I = Internal M = Tiny Bars Shank Cross Section Bar Diameter Swiss Type
Method Metric
S = Screw 0012 = 12 mm 3 = 3.0 mm Total length
0016 = 16 mm 4 = 4.0 mm
0020 = 20 mm 5 = 5.0 mm K= 120 mm (4.7")
0022 = 22 mm 6 = 6.0 mm M= 150 mm (5.7”)
0025 = 25 mm 7 = 7.0 mm
8 = 8.0 mm
22S = 22 mm 10 = 10.0 mm
Inch
0750 = .75 in
1000 = .10 in

Tiny Tools Bar Holders

Internal Coolant

Metric Shank Version

D1 D d L Clamping Adjusting
Ordering Code Key
mm mm mm/in mm/in Screw Screw
SIM 0012 H3 12 12 / .47 88 / 3.5 K25 S24 S35
SIM 0016 H3S 16 20 / .79 75 / 3.0 K25 S25 S35S
SIM 0016 H3 16 20 / .79 88 / 3.5 K25 S25 S35
3.0 SIM 0020 H3 20 20 / .79 88 / 3.5 K25 S25 S35
SIM 0022 H3 22 22 / .87 88 / 3.5 K25 S25 S35
SIM0022 H3K 22 22 / .87 120 / 4.7 K25 S25 S55
SIM0025 H3M 25 25 / .98 150 / 5.9 K25 S25 -

106
