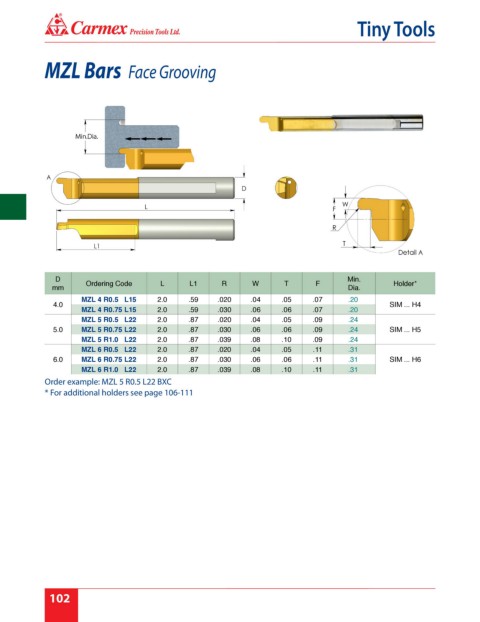

Page 108 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MZL Bars Face Grooving

D Min.
Ordering Code L L1 R W T F Holder*
mm Dia.
MZL 4 R0.5 L15 2.0 .59 .020 .04 .05 .07 .20
4.0 SIM ... H4
MZL 4 R0.75 L15 2.0 .59 .030 .06 .06 .07 .20
MZL 5 R0.5 L22 2.0 .87 .020 .04 .05 .09 .24
5.0 MZL 5 R0.75 L22 2.0 .87 .030 .06 .06 .09 .24 SIM ... H5
MZL 5 R1.0 L22 2.0 .87 .039 .08 .10 .09 .24
MZL 6 R0.5 L22 2.0 .87 .020 .04 .05 .11 .31
6.0 MZL 6 R0.75 L22 2.0 .87 .030 .06 .06 .11 .31 SIM ... H6
MZL 6 R1.0 L22 2.0 .87 .039 .08 .10 .11 .31
Order example: MZL 5 R0.5 L22 BXC
* For additional holders see page 106-111
