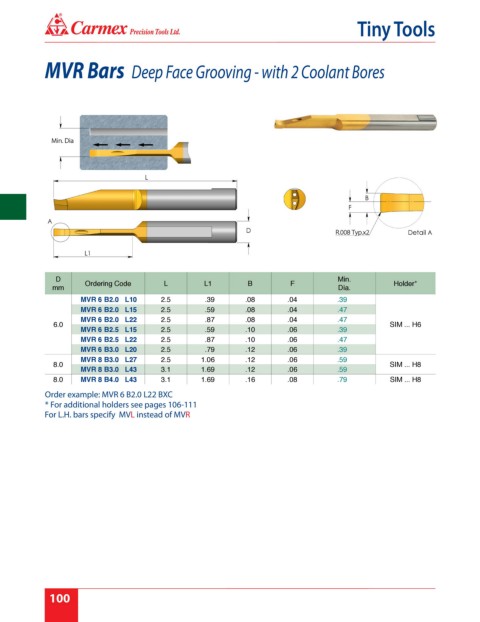

Page 106 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MVR Bars Deep Face Grooving - with 2 Coolant Bores

D Min.
Ordering Code L L1 B F Holder*
mm Dia.
MVR 6 B2.0 L10 2.5 .39 .08 .04 .39
MVR 6 B2.0 L15 2.5 .59 .08 .04 .47
MVR 6 B2.0 L22 2.5 .87 .08 .04 .47
6.0 SIM ... H6
MVR 6 B2.5 L15 2.5 .59 .10 .06 .39
MVR 6 B2.5 L22 2.5 .87 .10 .06 .47
MVR 6 B3.0 L20 2.5 .79 .12 .06 .39
MVR 8 B3.0 L27 2.5 1.06 .12 .06 .59
8.0 SIM ... H8
MVR 8 B3.0 L43 3.1 1.69 .12 .06 .59
8.0 MVR 8 B4.0 L43 3.1 1.69 .16 .08 .79 SIM ... H8
Order example: MVR 6 B2.0 L22 BXC
* For additional holders see pages 106-111
For L.H. bars specify MVL instead of MVR
