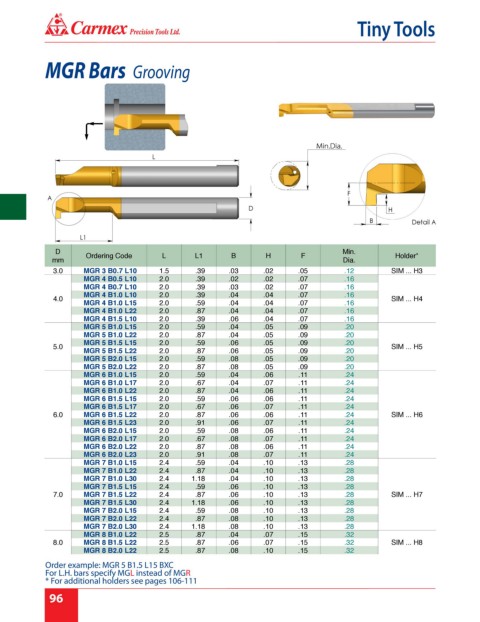

Page 102 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MGR Bars Grooving

D Ordering Code L L1 B H F Min. Holder*
mm Dia.
3.0 MGR 3 B0.7 L10 1.5 .39 .03 .02 .05 .12 SIM ... H3
MGR 4 B0.5 L10 2.0 .39 .02 .02 .07 .16
MGR 4 B0.7 L10 2.0 .39 .03 .02 .07 .16
MGR 4 B1.0 L10 2.0 .39 .04 .04 .07 .16
4.0 SIM ... H4
MGR 4 B1.0 L15 2.0 .59 .04 .04 .07 .16
MGR 4 B1.0 L22 2.0 .87 .04 .04 .07 .16
MGR 4 B1.5 L10 2.0 .39 .06 .04 .07 .16
MGR 5 B1.0 L15 2.0 .59 .04 .05 .09 .20
MGR 5 B1.0 L22 2.0 .87 .04 .05 .09 .20
MGR 5 B1.5 L15 2.0 .59 .06 .05 .09 .20
5.0 SIM ... H5
MGR 5 B1.5 L22 2.0 .87 .06 .05 .09 .20
MGR 5 B2.0 L15 2.0 .59 .08 .05 .09 .20
MGR 5 B2.0 L22 2.0 .87 .08 .05 .09 .20
MGR 6 B1.0 L15 2.0 .59 .04 .06 .11 .24
MGR 6 B1.0 L17 2.0 .67 .04 .07 .11 .24
MGR 6 B1.0 L22 2.0 .87 .04 .06 .11 .24
MGR 6 B1.5 L15 2.0 .59 .06 .06 .11 .24
MGR 6 B1.5 L17 2.0 .67 .06 .07 .11 .24
6.0 MGR 6 B1.5 L22 2.0 .87 .06 .06 .11 .24 SIM ... H6
MGR 6 B1.5 L23 2.0 .91 .06 .07 .11 .24
MGR 6 B2.0 L15 2.0 .59 .08 .06 .11 .24
MGR 6 B2.0 L17 2.0 .67 .08 .07 .11 .24
MGR 6 B2.0 L22 2.0 .87 .08 .06 .11 .24
MGR 6 B2.0 L23 2.0 .91 .08 .07 .11 .24
MGR 7 B1.0 L15 2.4 .59 .04 .10 .13 .28
MGR 7 B1.0 L22 2.4 .87 .04 .10 .13 .28
MGR 7 B1.0 L30 2.4 1.18 .04 .10 .13 .28
MGR 7 B1.5 L15 2.4 .59 .06 .10 .13 .28
7.0 MGR 7 B1.5 L22 2.4 .87 .06 .10 .13 .28 SIM ... H7
MGR 7 B1.5 L30 2.4 1.18 .06 .10 .13 .28
MGR 7 B2.0 L15 2.4 .59 .08 .10 .13 .28
MGR 7 B2.0 L22 2.4 .87 .08 .10 .13 .28
MGR 7 B2.0 L30 2.4 1.18 .08 .10 .13 .28
MGR 8 B1.0 L22 2.5 .87 .04 .07 .15 .32
8.0 MGR 8 B1.5 L22 2.5 .87 .06 .07 .15 .32 SIM ... H8
MGR 8 B2.0 L22 2.5 .87 .08 .10 .15 .32
Order example: MGR 5 B1.5 L15 BXC
For L.H. bars specify MGL instead of MGR
* For additional holders see pages 106-111
