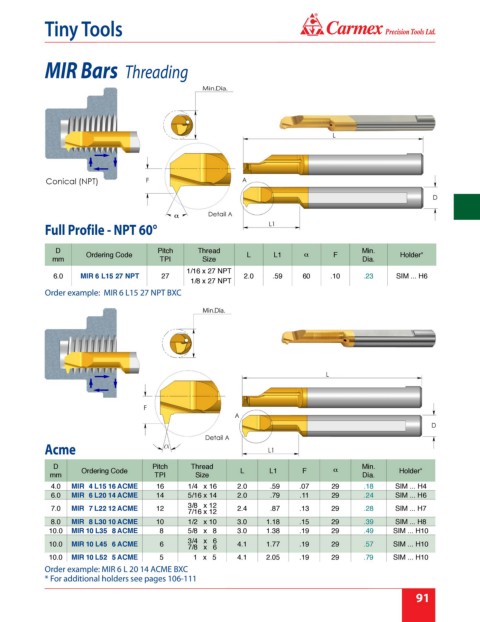

Page 97 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MIR Bars Threading

Full Profile - NPT 60°

D Ordering Code Pitch Thread L L1 F Min. Holder*
mm TPI Size Dia.
1/16 x 27 NPT
6.0 MIR 6 L15 27 NPT 27 2.0 .59 60 .10 .23 SIM ... H6
1/8 x 27 NPT
Order example: MIR 6 L15 27 NPT BXC

Acme

D Pitch Thread Min.
mm Ordering Code TPI Size L L1 F Dia. Holder*
4.0 MIR 4 L15 16 ACME 16 1/4 x 16 2.0 .59 .07 29 .18 SIM ... H4
6.0 MIR 6 L20 14 ACME 14 5/16 x 14 2.0 .79 .11 29 .24 SIM ... H6
3/8 x 12
7.0 MIR 7 L22 12 ACME 12 2.4 .87 .13 29 .28 SIM ... H7
7/16 x 12
8.0 MIR 8 L30 10 ACME 10 1/2 x 10 3.0 1.18 .15 29 .39 SIM ... H8
10.0 MIR 10 L35 8 ACME 8 5/8 x 8 3.0 1.38 .19 29 .49 SIM ... H10
3/4 x 6
10.0 MIR 10 L45 6 ACME 6 4.1 1.77 .19 29 .57 SIM ... H10
7/8 x 6
10.0 MIR 10 L52 5 ACME 5 1 x 5 4.1 2.05 .19 29 .79 SIM ... H10
Order example: MIR 6 L 20 14 ACME BXC
* For additional holders see pages 106-111
