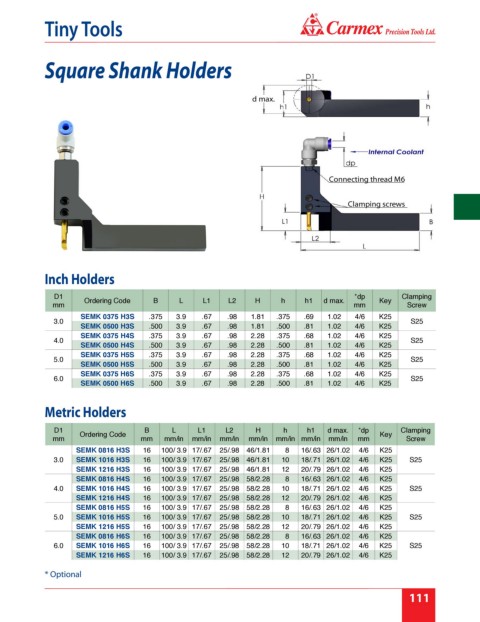

Page 117 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

Square Shank Holders

Inch Holders

D1 *dp Clamping
Ordering Code B L L1 L2 H h h1 d max. Key
mm mm Screw
SEMK 0375 H3S .375 3.9 .67 .98 1.81 .375 .69 1.02 4/6 K25
3.0 S25
SEMK 0500 H3S .500 3.9 .67 .98 1.81 .500 .81 1.02 4/6 K25
SEMK 0375 H4S .375 3.9 .67 .98 2.28 .375 .68 1.02 4/6 K25
4.0 S25
SEMK 0500 H4S .500 3.9 .67 .98 2.28 .500 .81 1.02 4/6 K25
SEMK 0375 H5S .375 3.9 .67 .98 2.28 .375 .68 1.02 4/6 K25
5.0 S25
SEMK 0500 H5S .500 3.9 .67 .98 2.28 .500 .81 1.02 4/6 K25
SEMK 0375 H6S .375 3.9 .67 .98 2.28 .375 .68 1.02 4/6 K25
6.0 S25
SEMK 0500 H6S .500 3.9 .67 .98 2.28 .500 .81 1.02 4/6 K25

Metric Holders

D1 B L L1 L2 H h h1 d max. *dp Clamping
Ordering Code Key
mm mm mm/in mm/in mm/in mm/in mm/in mm/in mm/in mm Screw
SEMK 0816 H3S 16 100/ 3.9 17/.67 25/.98 46/1.81 8 16/.63 26/1.02 4/6 K25
3.0 SEMK 1016 H3S 16 100/ 3.9 17/.67 25/.98 46/1.81 10 18/.71 26/1.02 4/6 K25 S25
SEMK 1216 H3S 16 100/ 3.9 17/.67 25/.98 46/1.81 12 20/.79 26/1.02 4/6 K25
SEMK 0816 H4S 16 100/ 3.9 17/.67 25/.98 58/2.28 8 16/.63 26/1.02 4/6 K25
4.0 SEMK 1016 H4S 16 100/ 3.9 17/.67 25/.98 58/2.28 10 18/.71 26/1.02 4/6 K25 S25
SEMK 1216 H4S 16 100/ 3.9 17/.67 25/.98 58/2.28 12 20/.79 26/1.02 4/6 K25
SEMK 0816 H5S 16 100/ 3.9 17/.67 25/.98 58/2.28 8 16/.63 26/1.02 4/6 K25
5.0 SEMK 1016 H5S 16 100/ 3.9 17/.67 25/.98 58/2.28 10 18/.71 26/1.02 4/6 K25 S25
SEMK 1216 H5S 16 100/ 3.9 17/.67 25/.98 58/2.28 12 20/.79 26/1.02 4/6 K25
SEMK 0816 H6S 16 100/ 3.9 17/.67 25/.98 58/2.28 8 16/.63 26/1.02 4/6 K25
6.0 SEMK 1016 H6S 16 100/ 3.9 17/.67 25/.98 58/2.28 10 18/.71 26/1.02 4/6 K25 S25
SEMK 1216 H6S 16 100/ 3.9 17/.67 25/.98 58/2.28 12 20/.79 26/1.02 4/6 K25

* Optional
