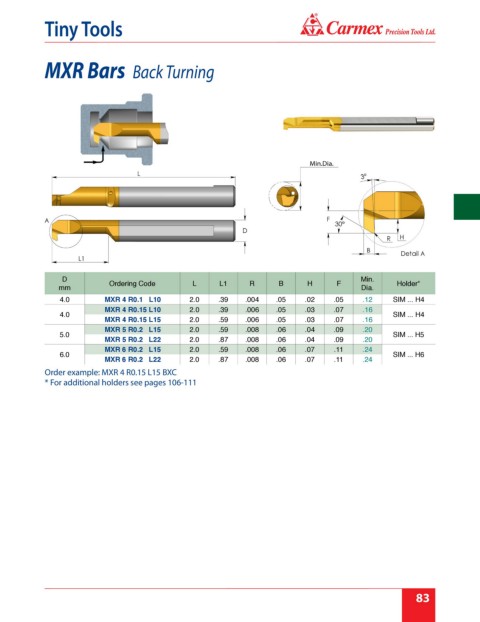

Page 89 - Carmex - Inch Catalog 2018-19 Rev. B
P. 89
®
Tiny Tools
MXR Bars Back Turning
D Min.
Ordering Code L L1 R B H F Holder*
mm Dia.
4.0 MXR 4 R0.1 L10 2.0 .39 .004 .05 .02 .05 .12 SIM ... H4
MXR 4 R0.15 L10 2.0 .39 .006 .05 .03 .07 .16
4.0 SIM ... H4
MXR 4 R0.15 L15 2.0 .59 .006 .05 .03 .07 .16
MXR 5 R0.2 L15 2.0 .59 .008 .06 .04 .09 .20
5.0 SIM ... H5
MXR 5 R0.2 L22 2.0 .87 .008 .06 .04 .09 .20
MXR 6 R0.2 L15 2.0 .59 .008 .06 .07 .11 .24
6.0 SIM ... H6
MXR 6 R0.2 L22 2.0 .87 .008 .06 .07 .11 .24
Order example: MXR 4 R0.15 L15 BXC
* For additional holders see pages 106-111
83
