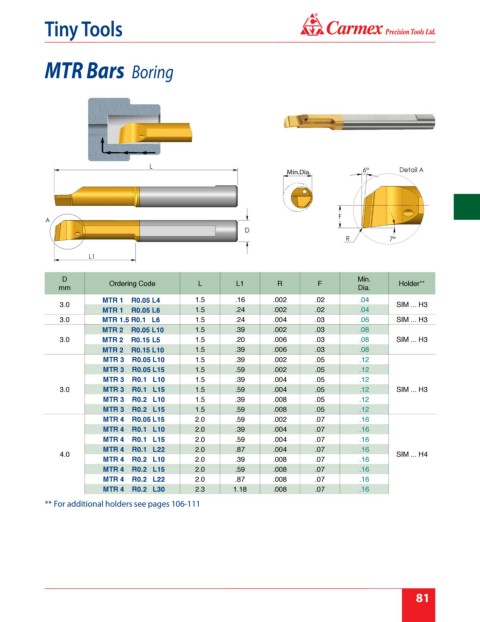

Page 87 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MTR Bars Boring

D Min.
Ordering Code L L1 R F Holder**
mm Dia.
MTR 1 R0.05 L4 1.5 .16 .002 .02 .04
3.0 SIM ... H3
MTR 1 R0.05 L6 1.5 .24 .002 .02 .04
3.0 MTR 1.5 R0.1 L6 1.5 .24 .004 .03 .06 SIM ... H3
MTR 2 R0.05 L10 1.5 .39 .002 .03 .08
3.0 MTR 2 R0.15 L5 1.5 .20 .006 .03 .08 SIM ... H3
MTR 2 R0.15 L10 1.5 .39 .006 .03 .08
MTR 3 R0.05 L10 1.5 .39 .002 .05 .12
MTR 3 R0.05 L15 1.5 .59 .002 .05 .12
MTR 3 R0.1 L10 1.5 .39 .004 .05 .12
3.0 MTR 3 R0.1 L15 1.5 .59 .004 .05 .12 SIM ... H3
MTR 3 R0.2 L10 1.5 .39 .008 .05 .12
MTR 3 R0.2 L15 1.5 .59 .008 .05 .12
MTR 4 R0.05 L15 2.0 .59 .002 .07 .16
MTR 4 R0.1 L10 2.0 .39 .004 .07 .16
MTR 4 R0.1 L15 2.0 .59 .004 .07 .16
MTR 4 R0.1 L22 2.0 .87 .004 .07 .16
4.0 SIM ... H4
MTR 4 R0.2 L10 2.0 .39 .008 .07 .16
MTR 4 R0.2 L15 2.0 .59 .008 .07 .16
MTR 4 R0.2 L22 2.0 .87 .008 .07 .16
MTR 4 R0.2 L30 2.3 1.18 .008 .07 .16
** For additional holders see pages 106-111
