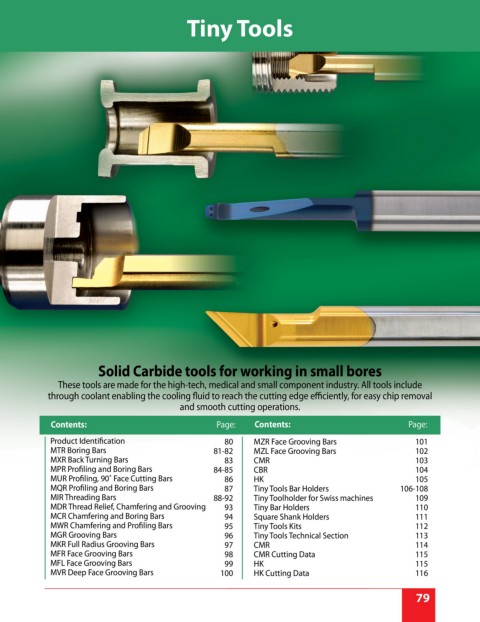

Tiny Tools
Solid Carbide tools for working in small bores
These tools are made for the high-tech, medical and small component industry. All tools include
through coolant enabling the cooling fluid to reach the cutting edge efficiently, for easy chip removal
and smooth cutting operations.
Contents: Page: Contents: Page:
Product Identification 80 MZR Face Grooving Bars 101
MTR Boring Bars 81-82 MZL Face Grooving Bars 102
MXR Back Turning Bars 83 CMR 103
MPR Profiling and Boring Bars 84-85 CBR 104
MUR Profiling, 90˚ Face Cutting Bars 86 HK 105
MQR Profiling and Boring Bars 87 Tiny Tools Bar Holders 106-108
MIR Threading Bars 88-92 Tiny Toolholder for Swiss machines 109
MDR Thread Relief, Chamfering and Grooving 93 Tiny Bar Holders 110
MCR Chamfering and Boring Bars 94 Square Shank Holders 111
MWR Chamfering and Profiling Bars 95 Tiny Tools Kits 112
MGR Grooving Bars 96 Tiny Tools Technical Section 113
MKR Full Radius Grooving Bars 97 CMR 114
MFR Face Grooving Bars 98 CMR Cutting Data 115
MFL Face Grooving Bars 99 HK 115
MVR Deep Face Grooving Bars 100 HK Cutting Data 116
79
