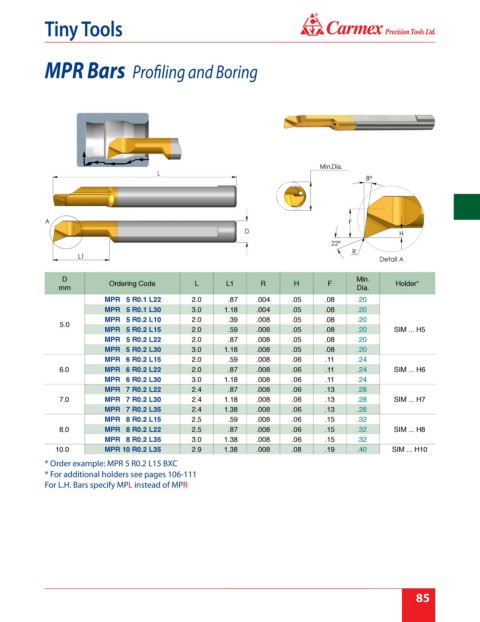

Page 91 - Carmex - Inch Catalog 2018-19 Rev. B

®
Tiny Tools

MPR Bars Profiling and Boring

D Min.
Ordering Code L L1 R H F Holder*
mm Dia.
MPR 5 R0.1 L22 2.0 .87 .004 .05 .08 .20
MPR 5 R0.1 L30 3.0 1.18 .004 .05 .08 .20
MPR 5 R0.2 L10 2.0 .39 .008 .05 .08 .20
5.0
MPR 5 R0.2 L15 2.0 .59 .008 .05 .08 .20 SIM ... H5
MPR 5 R0.2 L22 2.0 .87 .008 .05 .08 .20
MPR 5 R0.2 L30 3.0 1.18 .008 .05 .08 .20
MPR 6 R0.2 L15 2.0 .59 .008 .06 .11 .24
6.0 MPR 6 R0.2 L22 2.0 .87 .008 .06 .11 .24 SIM ... H6
MPR 6 R0.2 L30 3.0 1.18 .008 .06 .11 .24
MPR 7 R0.2 L22 2.4 .87 .008 .06 .13 .28
7.0 MPR 7 R0.2 L30 2.4 1.18 .008 .06 .13 .28 SIM ... H7
MPR 7 R0.2 L35 2.4 1.38 .008 .06 .13 .28
MPR 8 R0.2 L15 2.5 .59 .008 .06 .15 .32
8.0 MPR 8 R0.2 L22 2.5 .87 .008 .06 .15 .32 SIM ... H8
MPR 8 R0.2 L35 3.0 1.38 .008 .06 .15 .32
10.0 MPR 10 R0.2 L35 2.9 1.38 .008 .08 .19 .40 SIM ... H10
* Order example: MPR 5 R0.2 L15 BXC
* For additional holders see pages 106-111
For L.H. Bars specify MPL instead of MPR
