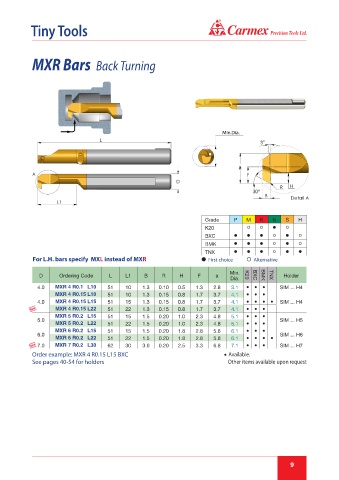

Page 9 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MXR Bars Back Turning

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MXL instead of MXR First choice Alternative

Min.
D Ordering Code L L1 B R H F a K20 BXC BMK TNX Holder
Dia.
4.0 MXR 4 R0.1 L10 51 10 1.3 0.10 0.5 1.3 2.8 3.1 ● ● ● SIM ... H4
MXR 4 R0.15 L10 51 10 1.3 0.15 0.8 1.7 3.7 4.1 ● ● ●
4.0 MXR 4 R0.15 L15 51 15 1.3 0.15 0.8 1.7 3.7 4.1 ● ● ● ● SIM ... H4
New MXR 4 R0.15 L22 51 22 1.3 0.15 0.8 1.7 3.7 4.1 ● ● ●
MXR 5 R0.2 L15 51 15 1.5 0.20 1.0 2.3 4.8 5.1 ● ● ●
5.0 SIM ... H5
MXR 5 R0.2 L22 51 22 1.5 0.20 1.0 2.3 4.8 5.1 ● ● ●
MXR 6 R0.2 L15 51 15 1.5 0.20 1.8 2.8 5.8 6.1 ● ● ●
6.0 SIM ... H6
MXR 6 R0.2 L22 51 22 1.5 0.20 1.8 2.8 5.8 6.1 ● ● ● ●
New 7.0 MXR 7 R0.2 L30 62 30 3.0 0.20 2.5 3.3 6.8 7.1 ● ● ● SIM ... H7
Order example: MXR 4 R0.15 L15 BXC ● Available.
See pages 40-54 for holders Other items available upon request
