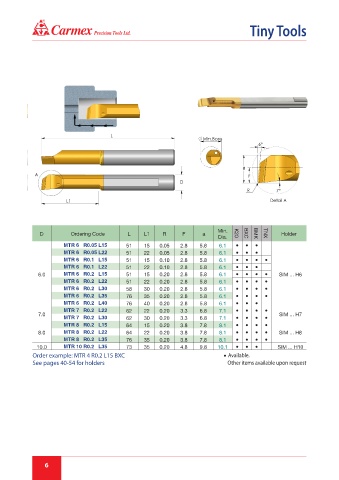

Page 6 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

Min.
D Ordering Code L L1 R F a K20 BXC BMK TNX Holder
Dia.
MTR 6 R0.05 L15 51 15 0.05 2.8 5.8 6.1 ● ● ●
MTR 6 R0.05 L22 51 22 0.05 2.8 5.8 6.1 ● ● ●
MTR 6 R0.1 L15 51 15 0.10 2.8 5.8 6.1 ● ● ● ●
MTR 6 R0.1 L22 51 22 0.10 2.8 5.8 6.1 ● ● ●
6.0 MTR 6 R0.2 L15 51 15 0.20 2.8 5.8 6.1 ● ● ● ● SIM ... H6
MTR 6 R0.2 L22 51 22 0.20 2.8 5.8 6.1 ● ● ● ●
MTR 6 R0.2 L30 58 30 0.20 2.8 5.8 6.1 ● ● ● ●
MTR 6 R0.2 L35 76 35 0.20 2.8 5.8 6.1 ● ● ● ●
MTR 6 R0.2 L40 76 40 0.20 2.8 5.8 6.1 ● ● ●
MTR 7 R0.2 L22 62 22 0.20 3.3 6.8 7.1 ● ● ● ●
7.0 SIM ... H7
MTR 7 R0.2 L30 62 30 0.20 3.3 6.8 7.1 ● ● ● ●
MTR 8 R0.2 L15 64 15 0.20 3.8 7.8 8.1 ● ● ● ●
8.0 MTR 8 R0.2 L22 64 22 0.20 3.8 7.8 8.1 ● ● ● ● SIM ... H8
MTR 8 R0.2 L35 76 35 0.20 3.8 7.8 8.1 ● ● ● ●
10.0 MTR 10 R0.2 L35 73 35 0.20 4.8 9.8 10.1 ● ● ● SIM ... H10
Order example: MTR 4 R0.2 L15 BXC ● Available.
See pages 40-54 for holders Other items available upon request
