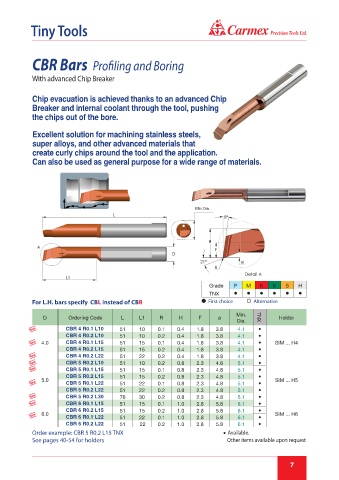

Page 7 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

CBR Bars Profiling and Boring

With advanced Chip Breaker

Chip evacuation is achieved thanks to an advanced Chip
Breaker and internal coolant through the tool, pushing
the chips out of the bore.

Excellent solution for machining stainless steels,
super alloys, and other advanced materials that
create curly chips around the tool and the application.
Can also be used as general purpose for a wide range of materials.

Min.Dia.

Grade P M K N S H
TNX      
For L.H. bars specify CBL instead of CBR First choice Alternative

Min.
D Ordering Code L L1 R H F a TNX Holder
Dia.
New CBR 4 R0.1 L10 51 10 0.1 0.4 1.8 3.8 4.1 ●
CBR 4 R0.2 L10 51 10 0.2 0.4 1.8 3.8 4.1 ●
New 4.0 CBR 4 R0.1 L15 51 15 0.1 0.4 1.8 3.8 4.1 ● SIM ... H4
CBR 4 R0.2 L15 51 15 0.2 0.4 1.8 3.8 4.1 ●
New CBR 4 R0.2 L22 51 22 0.2 0.4 1.8 3.8 4.1 ●
New CBR 5 R0.2 L10 51 10 0.2 0.8 2.3 4.8 5.1 ●
New CBR 5 R0.1 L15 51 15 0.1 0.8 2.3 4.8 5.1 ●
CBR 5 R0.2 L15 51 15 0.2 0.8 2.3 4.8 5.1 ●
New 5.0 CBR 5 R0.1 L22 51 22 0.1 0.8 2.3 4.8 5.1 ● SIM ... H5
CBR 5 R0.2 L22 51 22 0.2 0.8 2.3 4.8 5.1 ●
New CBR 5 R0.2 L30 76 30 0.2 0.8 2.3 4.8 5.1 ●
New CBR 6 R0.1 L15 51 15 0.1 1.0 2.8 5.8 6.1 ●
CBR 6 R0.2 L15 51 15 0.2 1.0 2.8 5.8 6.1 ●
New 6.0 CBR 6 R0.1 L22 51 22 0.1 1.0 2.8 5.8 6.1 ● SIM ... H6
CBR 6 R0.2 L22 51 22 0.2 1.0 2.8 5.8 6.1 ●
Order example: CBR 5 R0.2 L15 TNX ● Available.
See pages 40-54 for holders Other items available upon request
