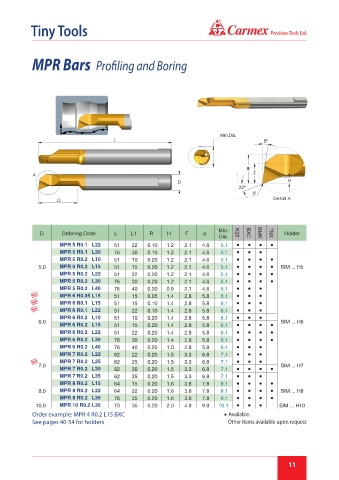

Page 11 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MPR Bars Profiling and Boring

Min.
D Ordering Code L L1 R H F a K20 BXC BMK TNX Holder
Dia.
MPR 5 R0.1 L22 51 22 0.10 1.2 2.1 4.6 5.1 ● ● ● ●
MPR 5 R0.1 L30 76 30 0.10 1.2 2.1 4.6 5.1 ● ● ●
MPR 5 R0.2 L10 51 10 0.20 1.2 2.1 4.6 5.1 ● ● ● ●
5.0 MPR 5 R0.2 L15 51 15 0.20 1.2 2.1 4.6 5.1 ● ● ● ● SIM ... H5
MPR 5 R0.2 L22 51 22 0.20 1.2 2.1 4.6 5.1 ● ● ● ●
MPR 5 R0.2 L30 76 30 0.20 1.2 2.1 4.6 5.1 ● ● ● ●
MPR 5 R0.2 L40 76 40 0.20 0.9 2.1 4.6 5.1 ● ● ●
New MPR 6 R0.05 L15 51 15 0.05 1.4 2.8 5.8 6.1 ● ● ●
New MPR 6 R0.1 L15 51 15 0.10 1.4 2.8 5.8 6.1 ● ● ●
New MPR 6 R0.1 L22 51 22 0.10 1.4 2.8 5.8 6.1 ● ● ●
MPR 6 R0.2 L10 51 10 0.20 1.4 2.8 5.8 6.1 ● ● ●
6.0 SIM ... H6
MPR 6 R0.2 L15 51 15 0.20 1.4 2.8 5.8 6.1 ● ● ● ●
MPR 6 R0.2 L22 51 22 0.20 1.4 2.8 5.8 6.1 ● ● ● ●
MPR 6 R0.2 L30 76 30 0.20 1.4 2.8 5.8 6.1 ● ● ● ●
MPR 6 R0.2 L40 76 40 0.20 1.0 2.8 5.8 6.1 ● ● ●
MPR 7 R0.2 L22 62 22 0.20 1.5 3.3 6.8 7.1 ● ● ●
New MPR 7 R0.2 L25 62 25 0.20 1.5 3.3 6.8 7.1 ● ● ●
7.0 SIM ... H7
MPR 7 R0.2 L30 62 30 0.20 1.5 3.3 6.8 7.1 ● ● ● ●
MPR 7 R0.2 L35 62 35 0.20 1.5 3.3 6.8 7.1 ● ● ●
MPR 8 R0.2 L15 64 15 0.20 1.6 3.8 7.8 8.1 ● ● ● ●
8.0 MPR 8 R0.2 L22 64 22 0.20 1.6 3.8 7.8 8.1 ● ● ● ● SIM ... H8
MPR 8 R0.2 L35 76 35 0.20 1.6 3.8 7.8 8.1 ● ● ● ●
10.0 MPR 10 R0.2 L35 73 35 0.20 2.0 4.8 9.8 10.1 ● ● ● SIM ... H10
Order example: MPR 4 R0.2 L15 BXC ● Available.
See pages 40-54 for holders Other items available upon request

11
