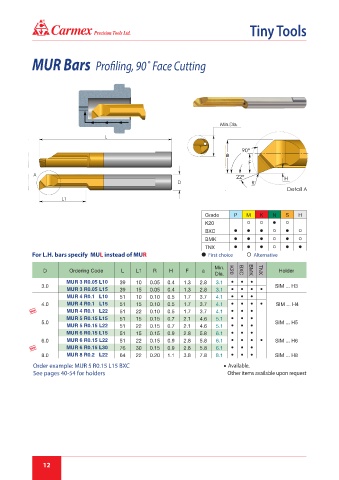

Page 12 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MUR Bars Profiling, 90˚ Face Cutting

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MUL instead of MUR First choice Alternative

Min.
D Ordering Code L L1 R H F a K20 BXC BMK TNX Holder
Dia.
MUR 3 R0.05 L10 39 10 0.05 0.4 1.3 2.8 3.1   
3.0 SIM ... H3
MUR 3 R0.05 L15 39 15 0.05 0.4 1.3 2.8 3.1    
MUR 4 R0.1 L10 51 10 0.10 0.5 1.7 3.7 4.1   
4.0 MUR 4 R0.1 L15 51 15 0.10 0.5 1.7 3.7 4.1     SIM ... H4
New MUR 4 R0.1 L22 51 22 0.10 0.5 1.7 3.7 4.1   
MUR 5 R0.15 L15 51 15 0.15 0.7 2.1 4.6 5.1   
5.0 SIM ... H5
MUR 5 R0.15 L22 51 22 0.15 0.7 2.1 4.6 5.1   
MUR 6 R0.15 L15 51 15 0.15 0.9 2.8 5.8 6.1   
6.0 MUR 6 R0.15 L22 51 22 0.15 0.9 2.8 5.8 6.1     SIM ... H6
New MUR 6 R0.15 L30 76 30 0.15 0.9 2.8 5.8 6.1   
8.0 MUR 8 R0.2 L22 64 22 0.20 1.1 3.8 7.8 8.1    SIM ... H8
Order example: MUR 5 R0.15 L15 BXC ● Available.
See pages 40-54 for holders Other items available upon request
