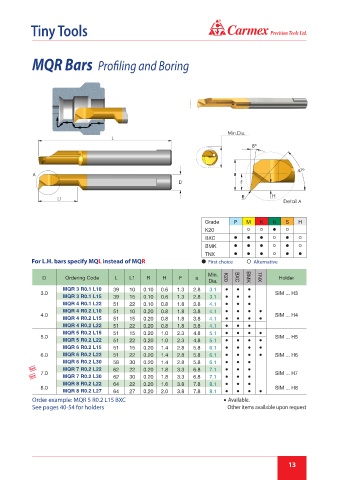

Page 13 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MQR Bars Profiling and Boring

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MQL instead of MQR First choice Alternative

Min.
D Ordering Code L L1 R H F a K20 BXC BMK TNX Holder
Dia.
MQR 3 R0.1 L10 39 10 0.10 0.6 1.3 2.8 3.1 ● ● ●
3.0 SIM ... H3
MQR 3 R0.1 L15 39 15 0.10 0.6 1.3 2.8 3.1 ● ● ●
MQR 4 R0.1 L22 51 22 0.10 0.8 1.8 3.8 4.1 ● ● ●
MQR 4 R0.2 L10 51 10 0.20 0.8 1.8 3.8 4.1 ● ● ● ●
4.0 SIM ... H4
MQR 4 R0.2 L15 51 15 0.20 0.8 1.8 3.8 4.1 ● ● ● ●
MQR 4 R0.2 L22 51 22 0.20 0.8 1.8 3.8 4.1 ● ● ●
MQR 5 R0.2 L15 51 15 0.20 1.0 2.3 4.8 5.1 ● ● ● ●
5.0 SIM ... H5
MQR 5 R0.2 L22 51 22 0.20 1.0 2.3 4.8 5.1 ● ● ● ●
MQR 6 R0.2 L15 51 15 0.20 1.4 2.8 5.8 6.1 ● ● ● ●
6.0 MQR 6 R0.2 L22 51 22 0.20 1.4 2.8 5.8 6.1 ● ● ● ● SIM ... H6
MQR 6 R0.2 L30 58 30 0.20 1.4 2.8 5.8 6.1 ● ● ●
New MQR 7 R0.2 L22 62 22 0.20 1.8 3.3 6.8 7.1 ● ● ●
New 7.0 MQR 7 R0.2 L30 62 30 0.20 1.8 3.3 6.8 7.1 ● ● ● SIM ... H7
MQR 8 R0.2 L22 64 22 0.20 1.6 3.8 7.8 8.1 ● ● ●
8.0 SIM ... H8
MQR 8 R0.2 L27 64 27 0.20 2.0 3.8 7.8 8.1 ● ● ● ●
Order example: MQR 5 R0.2 L15 BXC ● Available.
See pages 40-54 for holders Other items available upon request
