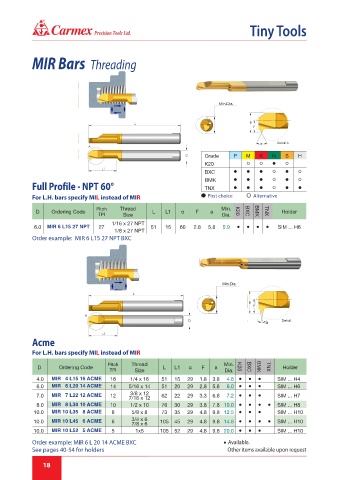

Page 18 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MIR Bars Threading

Grade P M K N S H
K20    
BXC      
Full Profile - NPT 60° BMK      






TNX
For L.H. bars specify MIL instead of MIR First choice Alternative
Pitch Thread Min.
D Ordering Code L L1 α F a K20 BXC BMK TNX Holder
TPI Size Dia.
1/16 x 27 NPT
6.0 MIR 6 L15 27 NPT 27 51 15 60 2.8 5.8 5.9 ● ● ● ● SIM ... H6
1/8 x 27 NPT
Order example: MIR 6 L15 27 NPT BXC

Acme
For L.H. bars specify MIL instead of MIR

Pitch Thread Min.
D Ordering Code L L1 α F a K20 BXC BMK TNX Holder
TPI Size Dia.
4.0 MIR 4 L15 16 ACME 16 1/4 x 16 51 15 29 1.8 3.8 4.6 ● ● ● SIM ... H4
6.0 MIR 6 L20 14 ACME 14 5/16 x 14 51 20 29 2.8 5.8 6.0 ● ● ● SIM ... H6
7.0 MIR 7 L22 12 ACME 12 3/8 x 12 62 22 29 3.3 6.8 7.2 ● ● ● SIM ... H7
7/16 x 12
8.0 MIR 8 L30 10 ACME 10 1/2 x 10 76 30 29 3.8 7.8 10.0 ● ● ● ● SIM ... H8
10.0 MIR 10 L35 8 ACME 8 5/8 x 8 73 35 29 4.8 9.8 12.5 ● ● ● SIM ... H10
10.0 MIR 10 L45 6 ACME 6 3/4 x 6 105 45 29 4.8 9.8 14.6 ● ● ● ● SIM ... H10
7/8 x 6
10.0 MIR 10 L52 5 ACME 5 1x5 105 52 29 4.8 9.8 20.0 ● ● ● SIM ... H10
Order example: MIR 6 L 20 14 ACME BXC ● Available.
See pages 40-54 for holders Other items available upon request

18
