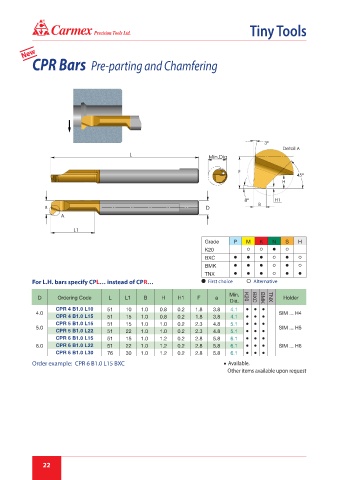

Page 22 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

New

CPR Bars Pre-parting and Chamfering

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify CPL… instead of CPR… First choice Alternative

Min.
D Ordering Code L L1 B H H1 F a K20 BXC BMK TNX Holder
Dia.
CPR 4 B1.0 L10 51 10 1.0 0.8 0.2 1.8 3.8 4.1 ● ● ●
4.0 SIM ... H4
CPR 4 B1.0 L15 51 15 1.0 0.8 0.2 1.8 3.8 4.1 ● ● ●
CPR 5 B1.0 L15 51 15 1.0 1.0 0.2 2.3 4.8 5.1 ● ● ●
5.0 SIM ... H5
CPR 5 B1.0 L22 51 22 1.0 1.0 0.2 2.3 4.8 5.1 ● ● ●
CPR 6 B1.0 L15 51 15 1.0 1.2 0.2 2.8 5.8 6.1 ● ● ●
6.0 CPR 6 B1.0 L22 51 22 1.0 1.2 0.2 2.8 5.8 6.1 ● ● ● SIM ... H6
CPR 6 B1.0 L30 76 30 1.0 1.2 0.2 2.8 5.8 6.1 ● ● ●
Order example: CPR 6 B1.0 L15 BXC ● Available.
Other items available upon request
