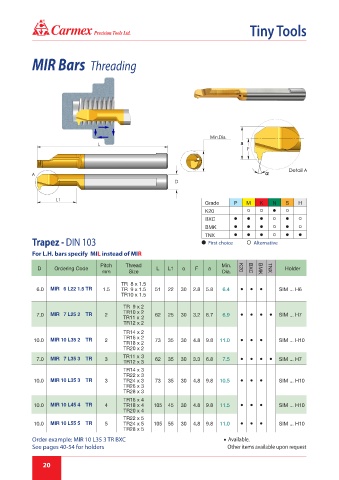

Page 20 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MIR Bars Threading

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
Trapez - DIN 103 First choice Alternative

For L.H. bars specify MIL instead of MIR

Pitch Thread Min.
D Ordering Code L L1 α F a K20 BXC BMK TNX Holder
mm Size Dia.
TR 8 x 1.5
6.0 MIR 6 L22 1.5 TR 1.5 TR 9 x 1.5 51 22 30 2.8 5.8 6.4 ● ● ● SIM ... H6
TR10 x 1.5

TR 9 x 2
TR10 x 2
7.0 MIR 7 L25 2 TR 2 62 25 30 3.2 6.7 6.9 ● ● ● ● SIM ... H7
TR11 x 2
TR12 x 2
TR14 x 2
10.0 MIR 10 L35 2 TR 2 TR16 x 2 73 35 30 4.8 9.8 11.0 ● ● ● SIM ... H10
TR18 x 2
TR20 x 2
TR11 x 3
7.0 MIR 7 L35 3 TR 3 62 35 30 3.3 6.8 7.5 ● ● ● ● SIM ... H7
TR12 x 3
TR14 x 3
TR22 x 3
10.0 MIR 10 L35 3 TR 3 TR24 x 3 73 35 30 4.8 9.8 10.5 ● ● ● SIM ... H10
TR26 x 3
TR28 x 3
TR16 x 4
10.0 MIR 10 L45 4 TR 4 TR18 x 4 105 45 30 4.8 9.8 11.5 ● ● ● SIM ... H10
TR20 x 4
TR22 x 5
10.0 MIR 10 L55 5 TR 5 TR24 x 5 105 55 30 4.8 9.8 11.0 ● ● ● SIM ... H10
TR28 x 5
Order example: MIR 10 L35 3 TR BXC ● Available.
See pages 40-54 for holders Other items available upon request
