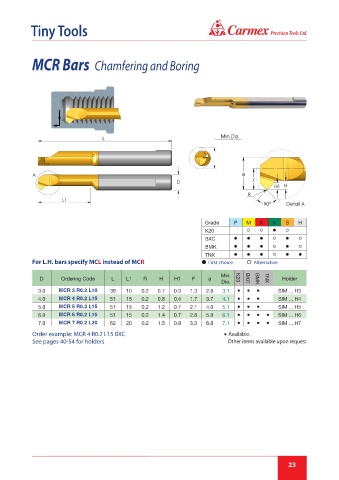

Tiny Tools

MCR Bars Chamfering and Boring

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MCL instead of MCR First choice Alternative

Min.
D Ordering Code L L1 R H H1 F a K20 BXC BMK TNX Holder
Dia.
3.0 MCR 3 R0.2 L10 39 10 0.2 0.7 0.3 1.3 2.8 3.1 ● ● ● SIM ... H3
4.0 MCR 4 R0.2 L15 51 15 0.2 0.8 0.4 1.7 3.7 4.1 ● ● ● SIM ... H4
5.0 MCR 5 R0.2 L15 51 15 0.2 1.2 0.7 2.1 4.6 5.1 ● ● ● SIM ... H5
6.0 MCR 6 R0.2 L15 51 15 0.2 1.4 0.7 2.8 5.8 6.1 ● ● ● ● SIM ... H6
7.0 MCR 7 R0.2 L20 62 20 0.2 1.5 0.8 3.3 6.8 7.1 ● ● ● ● SIM ... H7
Order example: MCR 4 R0.2 L15 BXC ● Available.
See pages 40-54 for holders Other items available upon request
