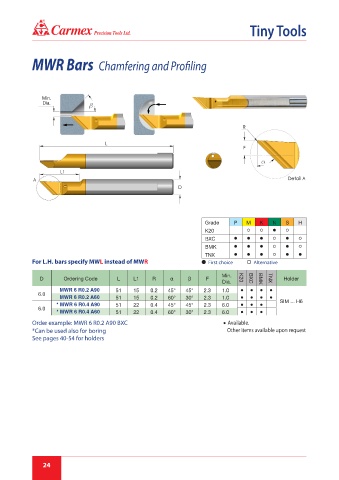

Page 24 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MWR Bars Chamfering and Profiling

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MWL instead of MWR First choice Alternative

Min.
D Ordering Code L L1 R α β F K20 BXC BMK TNX Holder
Dia.
MWR 6 R0.2 A90 51 15 0.2 45° 45° 2.3 1.0 ● ● ● ●
6.0
MWR 6 R0.2 A60 51 15 0.2 60° 30° 2.3 1.0 ● ● ● ●
SIM ... H6
* MWR 6 R0.4 A90 51 22 0.4 45° 45° 2.3 6.0 ● ● ●
6.0
* MWR 6 R0.4 A60 51 22 0.4 60° 30° 2.3 6.0 ● ● ●
Order example: MWR 6 R0.2 A90 BXC ● Available.
*Can be used also for boring Other items available upon request
See pages 40-54 for holders
