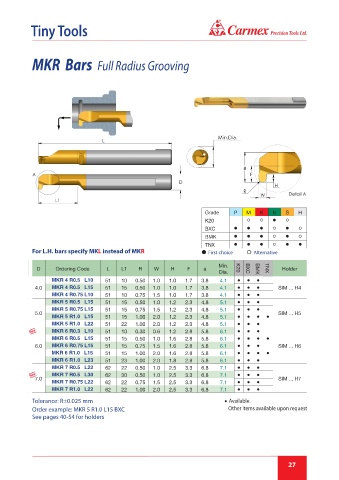

Page 27 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MKR Bars Full Radius Grooving

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
For L.H. bars specify MKL instead of MKR First choice Alternative

Min.
D Ordering Code L L1 R W H F a K20 BXC BMK TNX Holder
Dia.
MKR 4 R0.5 L10 51 10 0.50 1.0 1.0 1.7 3.8 4.1 ● ● ●
4.0 MKR 4 R0.5 L15 51 15 0.50 1.0 1.0 1.7 3.8 4.1 ● ● ● SIM ... H4
MKR 4 R0.75 L10 51 10 0.75 1.5 1.0 1.7 3.8 4.1 ● ● ●
MKR 5 R0.5 L15 51 15 0.50 1.0 1.2 2.3 4.8 5.1 ● ● ●
MKR 5 R0.75 L15 51 15 0.75 1.5 1.2 2.3 4.8 5.1 ● ● ●
5.0 SIM ... H5
MKR 5 R1.0 L15 51 15 1.00 2.0 1.2 2.3 4.8 5.1 ● ● ● ●
MKR 5 R1.0 L22 51 22 1.00 2.0 1.2 2.3 4.8 5.1 ● ● ●
New MKR 6 R0.3 L10 51 10 0.30 0.6 1.2 2.8 5.8 6.1 ● ● ●
MKR 6 R0.5 L15 51 15 0.50 1.0 1.6 2.8 5.8 6.1 ● ● ● ●
6.0 MKR 6 R0.75 L15 51 15 0.75 1.5 1.6 2.8 5.8 6.1 ● ● ● SIM ... H6
MKR 6 R1.0 L15 51 15 1.00 2.0 1.6 2.8 5.8 6.1 ● ● ● ●
MKR 6 R1.0 L23 51 23 1.00 2.0 1.8 2.8 5.8 6.1 ● ● ●
MKR 7 R0.5 L22 62 22 0.50 1.0 2.5 3.3 6.8 7.1 ● ● ●
New MKR 7 R0.5 L30 62 30 0.50 1.0 2.5 3.3 6.8 7.1 ● ● ●
7.0 SIM ... H7
MKR 7 R0.75 L22 62 22 0.75 1.5 2.5 3.3 6.8 7.1 ● ● ●
MKR 7 R1.0 L22 62 22 1.00 2.0 2.5 3.3 6.8 7.1 ● ● ●
Tolerance: R±0.025 mm ● Available.
Order example: MKR 5 R1.0 L15 BXC Other items available upon request
See pages 40-54 for holders
