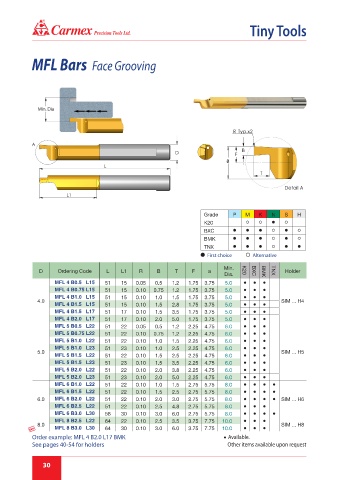

Page 30 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

MFL Bars Face Grooving

Grade P M K N S H
K20    
BXC      
BMK      
TNX      
First choice Alternative

Min.
D Ordering Code L L1 R B T F a K20 BXC BMK TNX Holder
Dia.
MFL 4 B0.5 L15 51 15 0.05 0.5 1.2 1.75 3.75 5.0 ● ● ●
MFL 4 B0.75 L15 51 15 0.10 0.75 1.2 1.75 3.75 5.0 ● ● ●
MFL 4 B1.0 L15 51 15 0.10 1.0 1.5 1.75 3.75 5.0 ● ● ●
4.0 SIM ... H4
MFL 4 B1.5 L15 51 15 0.10 1.5 2.8 1.75 3.75 5.0 ● ● ●
MFL 4 B1.5 L17 51 17 0.10 1.5 3.5 1.75 3.75 5.0 ● ● ●
MFL 4 B2.0 L17 51 17 0.10 2.0 5.0 1.75 3.75 5.0 ● ● ●
MFL 5 B0.5 L22 51 22 0.05 0.5 1.2 2.25 4.75 6.0 ● ● ●
MFL 5 B0.75 L22 51 22 0.10 0.75 1.2 2.25 4.75 6.0 ● ● ●
MFL 5 B1.0 L22 51 22 0.10 1.0 1.5 2.25 4.75 6.0 ● ● ●
MFL 5 B1.0 L23 51 23 0.10 1.0 2.5 2.25 4.75 6.0 ● ● ●
5.0 SIM ... H5
MFL 5 B1.5 L22 51 22 0.10 1.5 2.5 2.25 4.75 6.0 ● ● ●
MFL 5 B1.5 L23 51 23 0.10 1.5 3.5 2.25 4.75 6.0 ● ● ●
MFL 5 B2.0 L22 51 22 0.10 2.0 3.8 2.25 4.75 6.0 ● ● ●
MFL 5 B2.0 L23 51 23 0.10 2.0 5.0 2.25 4.75 6.0 ● ● ●
MFL 6 B1.0 L22 51 22 0.10 1.0 1.5 2.75 5.75 8.0 ● ● ● ●
MFL 6 B1.5 L22 51 22 0.10 1.5 2.5 2.75 5.75 8.0 ● ● ● ●
6.0 MFL 6 B2.0 L22 51 22 0.10 2.0 3.0 2.75 5.75 8.0 ● ● ● ● SIM ... H6
MFL 6 B2.5 L22 51 22 0.10 2.5 4.8 2.75 5.75 8.0 ● ● ●
MFL 6 B3.0 L30 58 30 0.10 3.0 6.0 2.75 5.75 8.0 ● ● ● ●
MFL 8 B2.5 L22 64 22 0.10 2.5 3.5 3.75 7.75 10.0 ● ● ●
8.0 SIM ... H8
New MFL 8 B3.0 L30 64 30 0.10 3.0 6.0 3.75 7.75 10.0 ● ● ●
Order example: MFL 4 B2.0 L17 BMK ● Available.
See pages 40-54 for holders Other items available upon request
