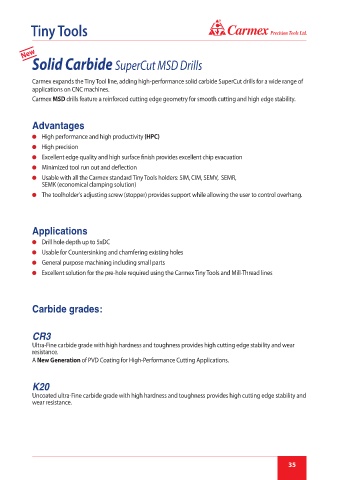

Page 35 - Carmex - Tiny Tools 2025 (Metric)
P. 35
®
Tiny Tools
New
Solid Carbide SuperCut MSD Drills
Carmex expands the Tiny Tool line, adding high-performance solid carbide SuperCut drills for a wide range of
applications on CNC machines.
Carmex MSD drills feature a reinforced cutting edge geometry for smooth cutting and high edge stability.
Advantages
High performance and high productivity (HPC)
High precision
Excellent edge quality and high surface finish provides excellent chip evacuation
Minimized tool run out and deflection
Usable with all the Carmex standard Tiny Tools holders: SIM, CIM, SEMV, SEMR,
SEMK (economical clamping solution)
The toolholder's adjusting screw (stopper) provides support while allowing the user to control overhang.
Applications
Drill hole depth up to 5xDC
Usable for Countersinking and chamfering existing holes
General purpose machining including small parts
Excellent solution for the pre-hole required using the Carmex Tiny Tools and Mill-Thread lines
Carbide grades:
CR3
Ultra-Fine carbide grade with high hardness and toughness provides high cutting edge stability and wear
resistance.
A New Generation of PVD Coating for High-Performance Cutting Applications.
K20
Uncoated ultra-Fine carbide grade with high hardness and toughness provides high cutting edge stability and
wear resistance.
35
