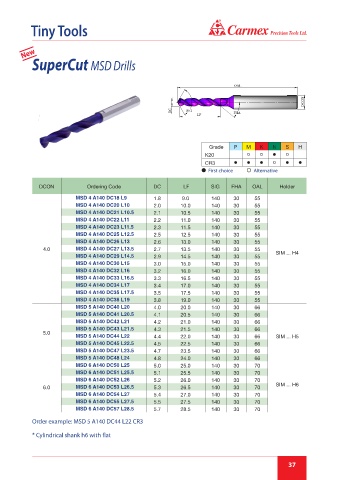

Page 37 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

New
SuperCut MSD Drills

OAL

DCON

DC SIG LF FHA

Grade P M K N S H
K20    
CR3      
First choice Alternative

DCON Ordering Code DC LF SIG FHA OAL Holder

MSD 4 A140 DC18 L9 1.8 9.0 140 30 55
MSD 4 A140 DC20 L10 2.0 10.0 140 30 55
MSD 4 A140 DC21 L10.5 2.1 10.5 140 30 55
MSD 4 A140 DC22 L11 2.2 11.0 140 30 55
MSD 4 A140 DC23 L11.5 2.3 11.5 140 30 55
MSD 4 A140 DC25 L12.5 2.5 12.5 140 30 55
MSD 4 A140 DC26 L13 2.6 13.0 140 30 55
4.0 MSD 4 A140 DC27 L13.5 2.7 13.5 140 30 55
SIM ... H4
MSD 4 A140 DC29 L14.5 2.9 14.5 140 30 55
MSD 4 A140 DC30 L15 3.0 15.0 140 30 55
MSD 4 A140 DC32 L16 3.2 16.0 140 30 55
MSD 4 A140 DC33 L16.5 3.3 16.5 140 30 55
MSD 4 A140 DC34 L17 3.4 17.0 140 30 55
MSD 4 A140 DC35 L17.5 3.5 17.5 140 30 55
MSD 4 A140 DC38 L19 3.8 19.0 140 30 55
MSD 5 A140 DC40 L20 4.0 20.0 140 30 66
MSD 5 A140 DC41 L20.5 4.1 20.5 140 30 66
MSD 5 A140 DC42 L21 4.2 21.0 140 30 66
MSD 5 A140 DC43 L21.5 4.3 21.5 140 30 66
5.0
MSD 5 A140 DC44 L22 4.4 22.0 140 30 66 SIM ... H5
MSD 5 A140 DC45 L22.5 4.5 22.5 140 30 66
MSD 5 A140 DC47 L23.5 4.7 23.5 140 30 66
MSD 5 A140 DC48 L24 4.8 24.0 140 30 66
MSD 6 A140 DC50 L25 5.0 25.0 140 30 70
MSD 6 A140 DC51 L25.5 5.1 25.5 140 30 70
MSD 6 A140 DC52 L26 5.2 26.0 140 30 70
SIM ... H6
6.0 MSD 6 A140 DC53 L26.5 5.3 26.5 140 30 70
MSD 6 A140 DC54 L27 5.4 27.0 140 30 70
MSD 6 A140 DC55 L27.5 5.5 27.5 140 30 70
MSD 6 A140 DC57 L28.5 5.7 28.5 140 30 70

Order example: MSD 5 A140 DC44 L22 CR3
* Cylindrical shank h6 with flat
