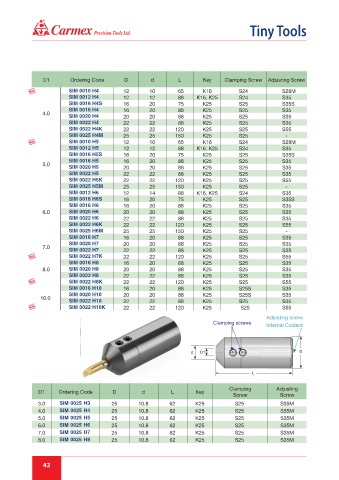

Page 42 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

D1 Ordering Code D d L Key Clamping Screw Adjusting Screw
New SIM 0010 H4 12 10 65 K16 S24 S28M
SIM 0012 H4 12 12 88 K16, K25 S24 S35
SIM 0016 H4S 16 20 75 K25 S25 S35S
SIM 0016 H4 16 20 88 K25 S25 S35
4.0
SIM 0020 H4 20 20 88 K25 S25 S35
SIM 0022 H4 22 22 88 K25 S25 S35
SIM 0022 H4K 22 22 120 K25 S25 S55
SIM 0025 H4M 25 25 150 K25 S25 -
New SIM 0010 H5 12 10 65 K16 S24 S28M
SIM 0012 H5 12 12 88 K16, K25 S24 S35
SIM 0016 H5S 16 20 75 K25 S25 S35S
SIM 0016 H5 16 20 88 K25 S25 S35
5.0
SIM 0020 H5 20 20 88 K25 S25 S35
SIM 0022 H5 22 22 88 K25 S25 S35
SIM 0022 H5K 22 22 120 K25 S25 S55
SIM 0025 H5M 25 25 150 K25 S25 -
SIM 0012 H6 12 14 88 K16, K25 S24 S35
SIM 0016 H6S 16 20 75 K25 S25 S35S
SIM 0016 H6 16 20 88 K25 S25 S35
6.0 SIM 0020 H6 20 20 88 K25 S25 S35
SIM 0022 H6 22 22 88 K25 S25 S35
SIM 0022 H6K 22 22 120 K25 S25 S55
SIM 0025 H6M 25 25 150 K25 S25 -
SIM 0016 H7 16 20 88 K25 S25 S35
SIM 0020 H7 20 20 88 K25 S25 S35
7.0
SIM 0022 H7 22 22 88 K25 S25 S35
New SIM 0022 H7K 22 22 120 K25 S25 S55
SIM 0016 H8 16 20 88 K25 S25 S35
8.0 SIM 0020 H8 20 20 88 K25 S25 S35
SIM 0022 H8 22 22 88 K25 S25 S35
New SIM 0022 H8K 22 22 120 K25 S25 S55
SIM 0016 H10 16 20 88 K25 S25S S35
SIM 0020 H10 20 20 88 K25 S25S S35
10.0
SIM 0022 H10 22 22 88 K25 S25 S35
New SIM 0022 H10K 22 22 120 K25 S25 S55
Adjusting screw
Internal Coolant

Clamping Adjusting
D1 Ordering Code D d L Key
Screw Screw
3.0 SIM 0025 H3 25 10.8 62 K25 S25 S35M
4.0 SIM 0025 H4 25 10.8 62 K25 S25 S35M
5.0 SIM 0025 H5 25 10.8 62 K25 S25 S35M
6.0 SIM 0025 H6 25 10.8 62 K25 S25 S35M
7.0 SIM 0025 H7 25 10.8 62 K25 S25 S35M
8.0 SIM 0025 H8 25 10.8 62 K25 S25 S35M
