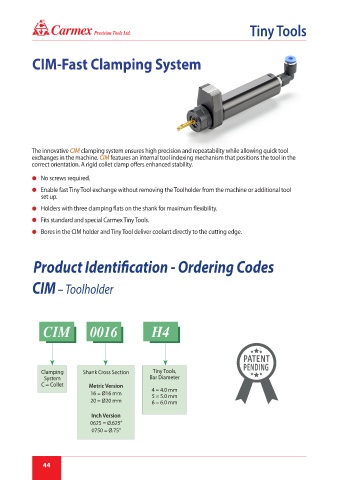

Page 44 - Carmex - Tiny Tools 2025 (Metric)
P. 44
®
Tiny Tools
CIM-Fast Clamping System
The innovative CIM clamping system ensures high precision and repeatability while allowing quick tool
exchanges in the machine. CIM features an internal tool indexing mechanism that positions the tool in the
correct orientation. A rigid collet clamp offers enhanced stability.
No screws required.
Enable fast Tiny Tool exchange without removing the Toolholder from the machine or additional tool
set up.
Holders with three clamping flats on the shank for maximum flexibility.
Fits standard and special Carmex Tiny Tools.
Bores in the CIM holder and Tiny Tool deliver coolant directly to the cutting edge.
Product Identification - Ordering Codes
CIM – Toolholder
CIM 0016 H4
Clamping Shank Cross Section Tiny Tools,
System Bar Diameter
C = Collet Metric Version
16 = Ø16 mm 4 = 4.0 mm
5 = 5.0 mm
20 = Ø20 mm 6 = 6.0 mm
Inch Version
0625 = Ø.625”
0750 = Ø.75”
