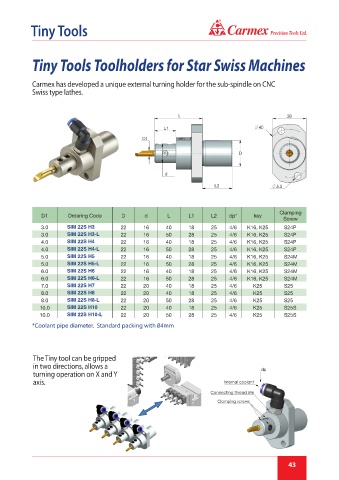

Page 43 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

Tiny Tools Toolholders for Star Swiss Machines

Carmex has developed a unique external turning holder for the sub-spindle on CNC
Swiss type lathes.

Clamping
D1 Ordering Code D d L L1 L2 dp* key
Screw
3.0 SIM 22S H3 22 16 40 18 25 4/6 K16, K25 S24P
3.0 SIM 22S H3-L 22 16 50 28 25 4/6 K16, K25 S24P
4.0 SIM 22S H4 22 16 40 18 25 4/6 K16, K25 S24P
4.0 SIM 22S H4-L 22 16 50 28 25 4/6 K16, K25 S24P
5.0 SIM 22S H5 22 16 40 18 25 4/6 K16, K25 S24M
5.0 SIM 22S H5-L 22 16 50 28 25 4/6 K16, K25 S24M
6.0 SIM 22S H6 22 16 40 18 25 4/6 K16, K25 S24M
6.0 SIM 22S H6-L 22 16 50 28 25 4/6 K16, K25 S24M
7.0 SIM 22S H7 22 20 40 18 25 4/6 K25 S25
8.0 SIM 22S H8 22 20 40 18 25 4/6 K25 S25
8.0 SIM 22S H8-L 22 20 50 28 25 4/6 K25 S25
10.0 SIM 22S H10 22 20 40 18 25 4/6 K25 S25S
10.0 SIM 22S H10-L 22 20 50 28 25 4/6 K25 S25S
*Coolant pipe diameter. Standard packing with 04mm

The Tiny tool can be gripped
in two directions, allows a
turning operation on X and Y
axis.
