Tiny Tools

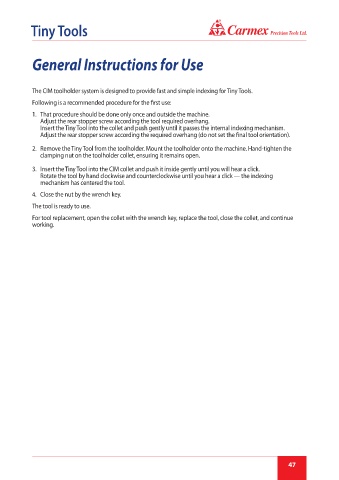

General Instructions for Use

The CIM toolholder system is designed to provide fast and simple indexing for Tiny Tools.

Following is a recommended procedure for the first use:
1. That procedure should be done only once and outside the machine.
Adjust the rear stopper screw according the tool required overhang.
Insert the Tiny Tool into the collet and push gently until it passes the internal indexing mechanism.
Adjust the rear stopper screw according the required overhang (do not set the final tool orientation).

2. Remove the Tiny Tool from the toolholder. Mount the toolholder onto the machine. Hand-tighten the
clamping nut on the toolholder collet, ensuring it remains open.

3. Insert the Tiny Tool into the CIM collet and push it inside gently until you will hear a click.
Rotate the tool by hand clockwise and counterclockwise until you hear a click — the indexing
mechanism has centered the tool.

4. Close the nut by the wrench key.
The tool is ready to use.

For tool replacement, open the collet with the wrench key, replace the tool, close the collet, and continue
working.
