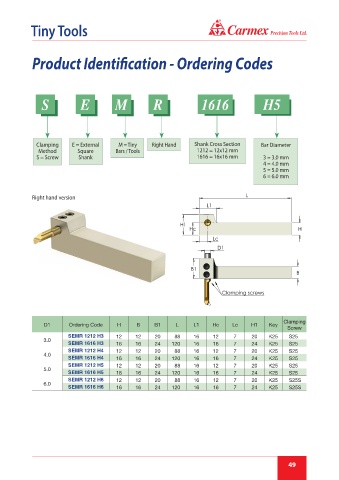

Page 49 - Carmex - Tiny Tools 2025 (Metric)

®
Tiny Tools

Product Identification - Ordering Codes

S E M R 1616 H5

Clamping E = External M = Tiny Right Hand Shank Cross Section Bar Diameter
Method Square Bars / Tools 1212 = 12x12 mm
S = Screw Shank 1616 = 16x16 mm 3 = 3.0 mm
4 = 4.0 mm
5 = 5.0 mm
6 = 6.0 mm

Right hand version

Clamping
D1 Ordering Code H B B1 L L1 Hc Lc H1 Key
Screw
SEMR 1212 H3 12 12 20 88 16 12 7 20 K25 S25
3.0
SEMR 1616 H3 16 16 24 120 16 16 7 24 K25 S25
SEMR 1212 H4 12 12 20 88 16 12 7 20 K25 S25
4.0
SEMR 1616 H4 16 16 24 120 16 16 7 24 K25 S25
SEMR 1212 H5 12 12 20 88 16 12 7 20 K25 S25
5.0
SEMR 1616 H5 16 16 24 120 16 16 7 24 K25 S25
SEMR 1212 H6 12 12 20 88 16 12 7 20 K25 S25S
6.0
SEMR 1616 H6 16 16 24 120 16 16 7 24 K25 S25S
